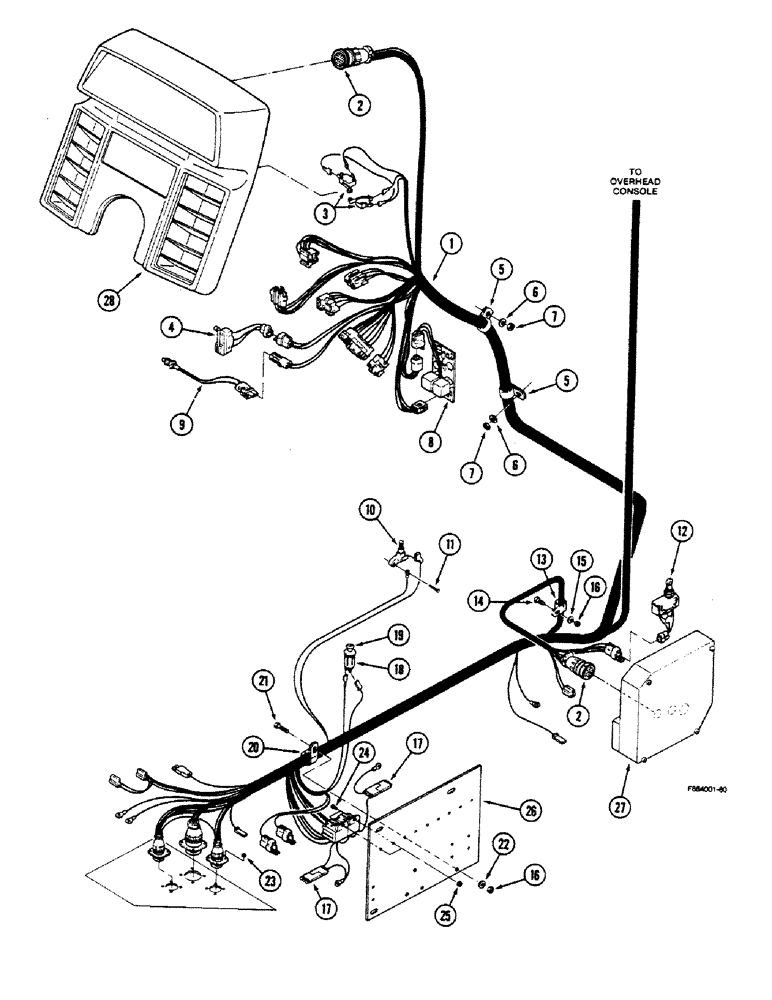

Запчасти Case IH 9150 (4-02) - LOWER CAB HARNESS, PRIOR TO P.I.N. 17900705 (04) - ELECTRICAL SYSTEMS

1

20-2260T4

HARNESS

ASSEMBLY - main cab, Includes: Ref.2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

20-1976T1

IGNITION SWITCH

SWITCH - micro, fan or clutch compressor (See Figure 9-96)

2шт.

4

20-2340T91

IGNITION SWITCH

SWITCH - micro, clutch (See Figure 6-44)

1шт.

5

1-2667

CLAMP

- retaining, harness

2шт.

6

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

3шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

3шт.

8

REF

INSTRUCTION

FLASHER ASSEMBLY - time base (See Figure 4-74)

1шт.

9

60-6027T1

SENSOR

- proximity (See Figure 6-44)

1шт.

10

20-2316T1

SWITCH

- park brake (See Figure 7-4)

1шт.

11

19-6216

SCREW - tapping, flanged head, no. 8 NC x 1 inch

1шт.

12

20-2050T2

IGNITION SWITCH

SWITCH - mode lever (See Figure 6-2)

1шт.

13

32-161

COLLAR CLAMP

CLAMP - retaining, harness

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

19-105

WASHER,1/4", SAE

- glat, 1/4 x 3/4 x 1/16 inch

1шт.

16

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

17

22-738

DIODE

- electrical

2шт.

18

20-2237T1

CONTAINER

RECEPTICLE - cigar lighter

1шт.

19

22-727

KNOB

LIGHTER - cigar, knob and plug

1шт.

20

31-1348

CLAMP

- retaining, harness

1шт.

21

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

22

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

23

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 NC

12шт.

24

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

SCEW - maching, pan head, no. 10 NF x 1/2 inch

2шт.

25

19-481

SERRATED NUT

- keps, no. 10 NF

2шт.

26

REF

INSTRUCTION

PLATE - instrumentation (See Figure 4-14)

1шт.

27

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission (See Figure 6-38)

1шт.

28

REF

INSTRUCTION

DASH ASSEMBLY - instrument (See Figures 4-28 and 9-80)

1шт.
