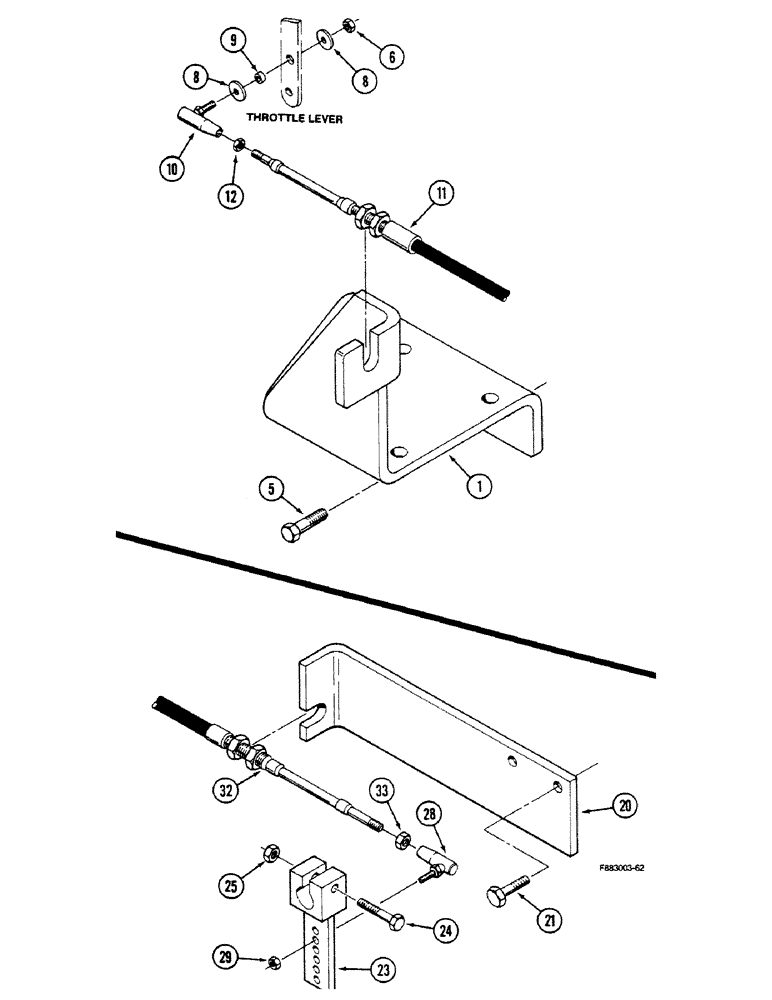

Запчасти Case IH 9150 (3-26) - THROTTLE CONTROLS, ENGINE ATTACHING, L-10 ENGINES (03) - FUEL SYSTEM

1

90-7085T1

BRACKET

- throttle cable (Replaces 90-5849T2)

1шт.

5

40-1093

BOLT,Hex, M10 x 1.5 x 30mm, Gr 8.8

BOLT - hex, M10 x 30 mm

2шт.

6

19-308

NUT,#10 - 32

- hex, no. 10 NF

1шт.

8

19-699

WASHER,3/16"

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

9

90-4150T1

BUSHING

- pivot (Replaces 60-4150T1)

1шт.

10

A75447

BALL JOINT

JOINT - ball, throttle

1шт.

11

60-3703T1

CABLE

- throttle, CAB

1шт.

11

60-5759T1

CABLE

- throttle, ROPS (Replaces 60-5848T1), Includes: Ref. 12

1шт.

12

19-308

NUT,#10 - 32

- hex, no. 10 NF

1шт.

20

60-3966T1

BRACKET

- throttle cable, controls engine attaching 3306 engine

1шт.

21

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, throttle controls engine attaching 3306 engine

2шт.

23

60-3085T1

ARM

LEVER - throttle, controls engine attaching 3306 engine

1шт.

24

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch, throttle controls engine attaching 3306 engine

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, throttle controls engine attaching 3306 engine

1шт.

28

A75447

BALL JOINT

JOINT - ball, throttle, throttle controls engine attaching 3306 engine

1шт.

29

19-308

NUT,#10 - 32

- hex, no. 10 NF, throttle controls engine attaching 3306 engine

1шт.

32

60-3703T1

CABLE

- throttle, CAB, controls engine attaching 3306 engine

1шт.

32

60-5848T1

BRACKET

CABLE - throttle, ROPS, controls engine attaching 3306 engine, Includes: Ref. 33

1шт.

33

19-308

NUT,#10 - 32

- hex, no. 10 NF, throttle controls engine attaching 3306 engine

1шт.
