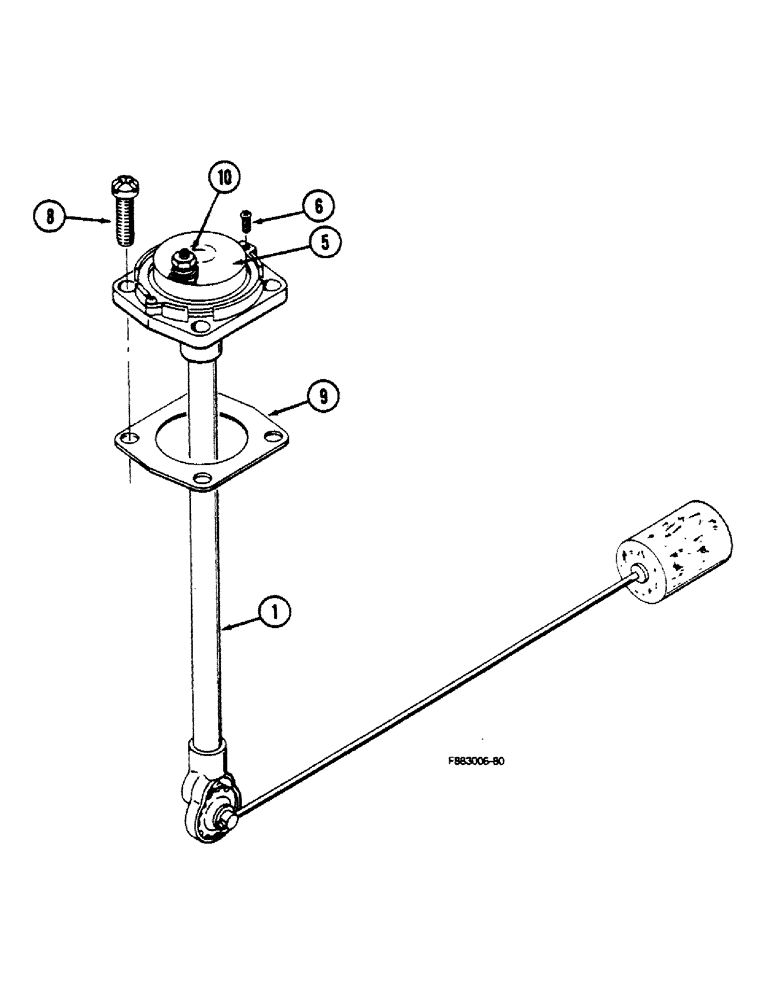

Запчасти Case IH 9150 (3-18) - FUEL SENSOR ASSEMBLY (03) - FUEL SYSTEM

20-2361T91

SENDER UNIT

SENSOR ASSEMBLY - fuel, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

SENSOR - fuel

1шт.

5

20-1379T1

DIAL

- fuel sensor and sender

1шт.

6

159229

SCREW,Cross Pan Hd, #6 - 32 x 1/4"

- pan head cross slot, no. 6 NC x 1/4 inch

2шт.

8

19-5814

BOLT (MACHINE),Pan, 5/16" x 5/8"

SCREW - pan head cross slot, 5/16 NF x 5/8 inch

4шт.

9

20-1380T1

GASKET

- fuel sensor

1шт.

10

19-308

NUT,#10 - 32

- hex, no. 10 NF

1шт.
