(3-12) - FUEL PUMP HOUSING, L-10 ENGINE

Запчасти Case IH 9150 (3-12) - FUEL PUMP HOUSING, L-10 ENGINE (03) - FUEL SYSTEM

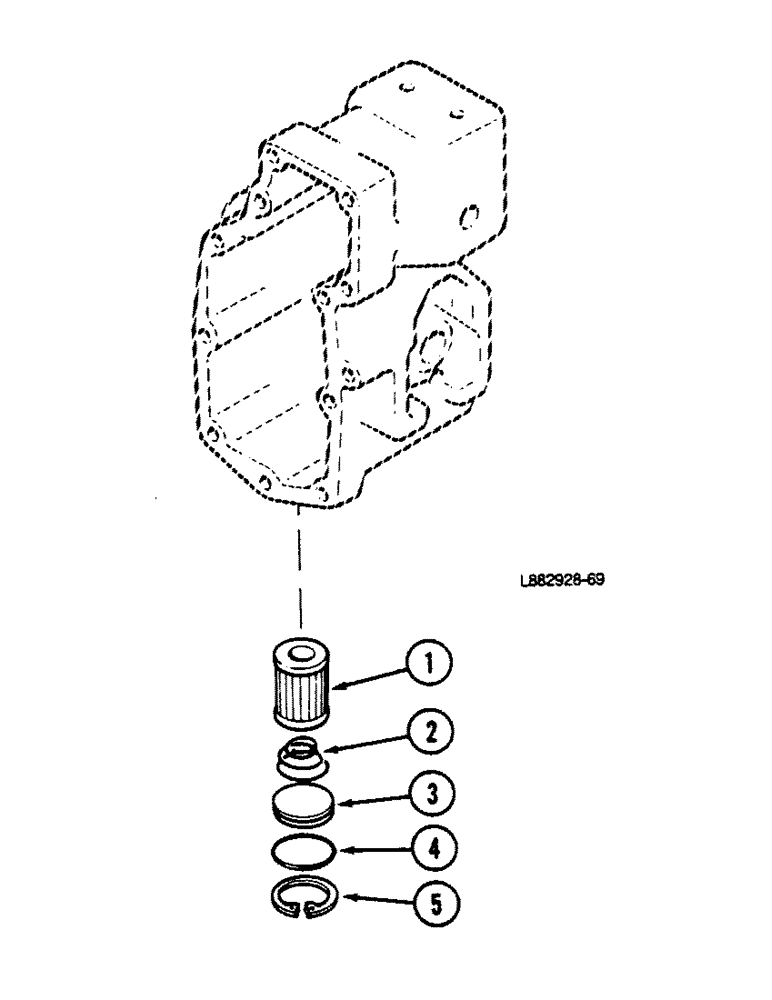

Схема запчастей Case IH 9150 - (3-12) - FUEL PUMP HOUSING, L-10 ENGINE (03) - FUEL SYSTEM
1
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - fuel pump, Includes: Ref. 1 - 5

1шт.

1

146483

FILTER

SCREEN - filter

1шт.

2

70700

SPRING

- compression

1шт.

3

201007

PLUG

- fuel screen

1шт.

4

NLS

NO LONGER SERVICED

O-RING - screen plug

1шт.

5

128807

RING, SNAP

RING - retaining

1шт.

Выбрано товаров: 6
