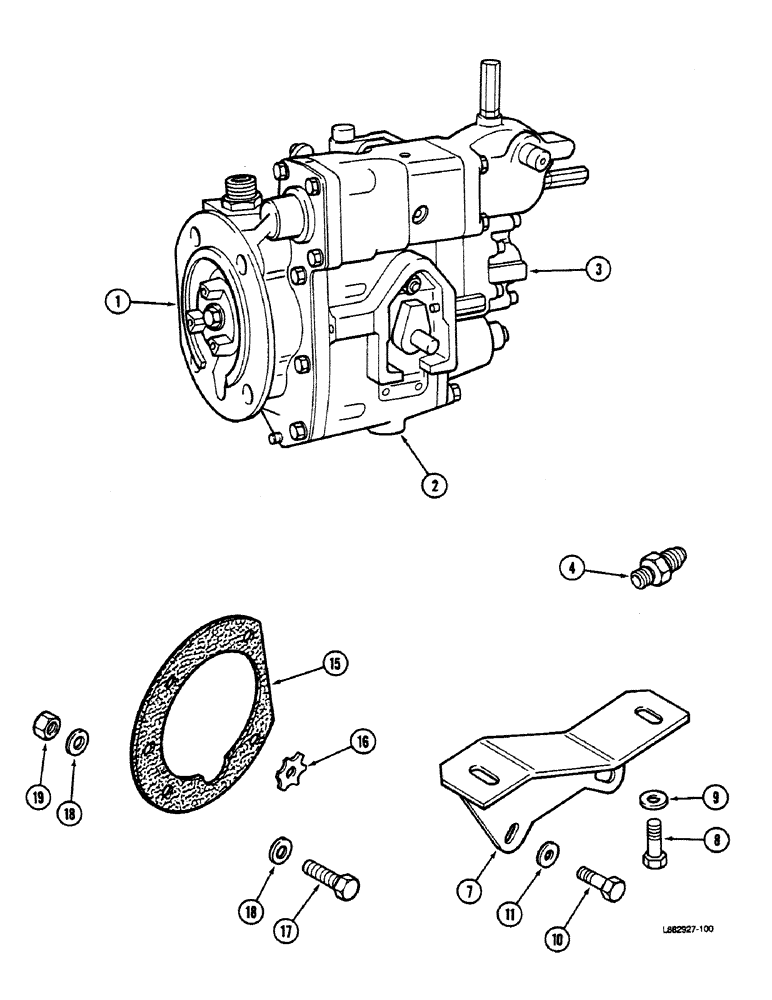

Запчасти Case IH 9150 (3-10) - FUEL INJECTION PUMP, L-10 ENGINE (03) - FUEL SYSTEM

1

A71011

SCREW

PUMP ASSEMBLY - fuel injection (Order from J.I. Case), Includes: Ref. 2 and 3

1шт.

Order all parts except Ref. 1

1шт.

2

REF

INSTRUCTION

HOUSING - pump, fuel injection (See Figure 3-12)

1шт.

3

REF

INSTRUCTION

GEAR - pump, fuel injection (See Figure 3-14)

1шт.

4

203850

SHIM

- fuel supply

1шт.

7

3040977

BRACE

- fuel pump

1шт.

8

3335044

CAP

BOLT - hex, M10 x 1.50 x 25 mm

2шт.

9

3003163

WASHER

- flat, 10 mm

2шт.

10

S167A

SCREW

BOLT - hex, 1/4 x 7/8 inch

2шт.

11

3821657

WASHER

- flat, 1/4 inch

2шт.

15

3048341

GASKET

- fuel pump

1шт.

16

3046200

SPIDER ASSY.

SPIDER - jaw coupling

1шт.

17

NLS

NO LONGER SERVICED

BOLT - hex, M10 x 1.50 x 45 mm

4шт.

18

3009330

WASHER

- flat, 10 mm

8шт.

19

3044360

NUT

- hex, 10 mm

4шт.
