Запчасти Case IH 9150 (3-02) - FUEL LINES SYSTEM, L-10 ENGINE (03) - FUEL SYSTEM

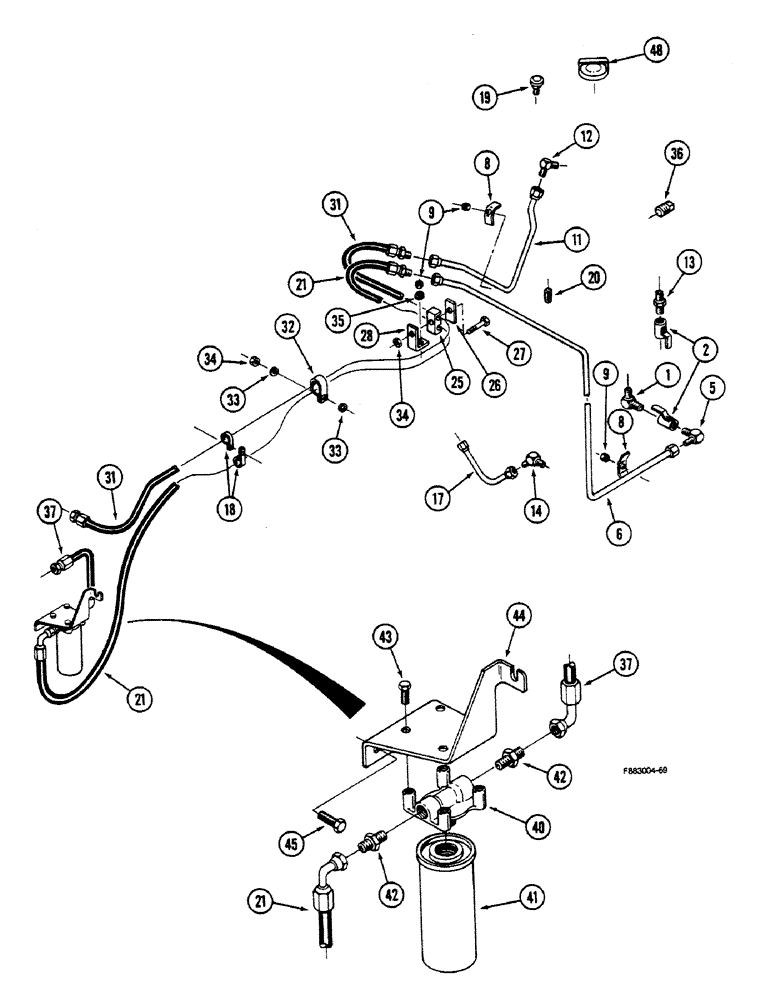

Схема запчастей Case IH 9150 - (3-02) - FUEL LINES SYSTEM, L-10 ENGINE (03) - FUEL SYSTEM
31
21
37
1
18
8
44
28
2
36
12
21
14
6
9
11
31
32
19
13
34
33
25
26
43
17
40
8
41
27
34
33
42
45
5
21
42
9
37
35
48
20

Артикул

Название

Примечание

Количество

1

31-1585

FITTING

ELBOW - 90 degree, 1/2 NPT x 1/2 inch NPT

1шт.

2

31-1267

SHUT-OFF VALVE

VALVE - shut off

2шт.

5

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 NPT x 7/8 inch thread

1шт.

6

90-5852T1

TUBE ASSY.,.625" OD

TUBE - fuel supply

1шт.

8

2-4183T1

CLAMP

- tube

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

90-5853T1

TUBE ASSY.,.5" OD

TUBE - fuel return

1шт.

12

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 NPT x 3/4 inch

1шт.

13

31-345

FITTING

CONNECTOR - straight, 1/2 NPT x 1/2 inch NPT

1шт.

14

31-402

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, 1/2 NPT x 3/4 inch

2шт.

17

90-5854T1

TUBE,.5" OD x 6.88", 6.88" L

- fuel crossover

1шт.

18

32-161

COLLAR CLAMP

CLAMP - hose

2шт.

19

31-1536

BREATHER

VENT - fuel tank

1шт.

20

31-35

PLUG

- square head, 1/2 inch NPT

1шт.

21

31-2514

HOSE ASSY.

HOSE - fuel supply, 45 inch

1шт.

25

50-2554T1

CLAMP

- hose, half

2шт.

26

50-2553T1

TUBE ASSY.

COVER - clamp

1шт.

27

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

28

90-6039T1

BRACKET

- mounting, clamp

1шт.

31

31-2516

HOSE ASSY.

HOSE return, fuel, 127 in.

1шт.

32

32-343

MOUNTING CLIP

CLAMP - hose

2шт.

33

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

34

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

35

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

2шт.

36

31-179

PLUG

- square head, 1-1/4 inch NPT

1шт.

37

31-2515

HOSE ASSY.

HOSE - fuel supply, 12 inch

1шт.

40

90-3940T1

HEAD

ASSEMBLY - filter, fuel

1шт.

41

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

42

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR - straight, 1/2 NPT x 7/8 inch

2шт.

43

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

4шт.

44

REF

INSTRUCTION

BRACKET - throttle cable (See Figure 3-26)

1шт.

45

REF

INSTRUCTION

BOLT - hex, M10 x 30 mm (See Figure 3-26)

2шт.

48

A162191

CAP

- fuel

1шт.

1971726C1

BREATHER,1/4" - 18

1шт.

Выбрано товаров: 34
