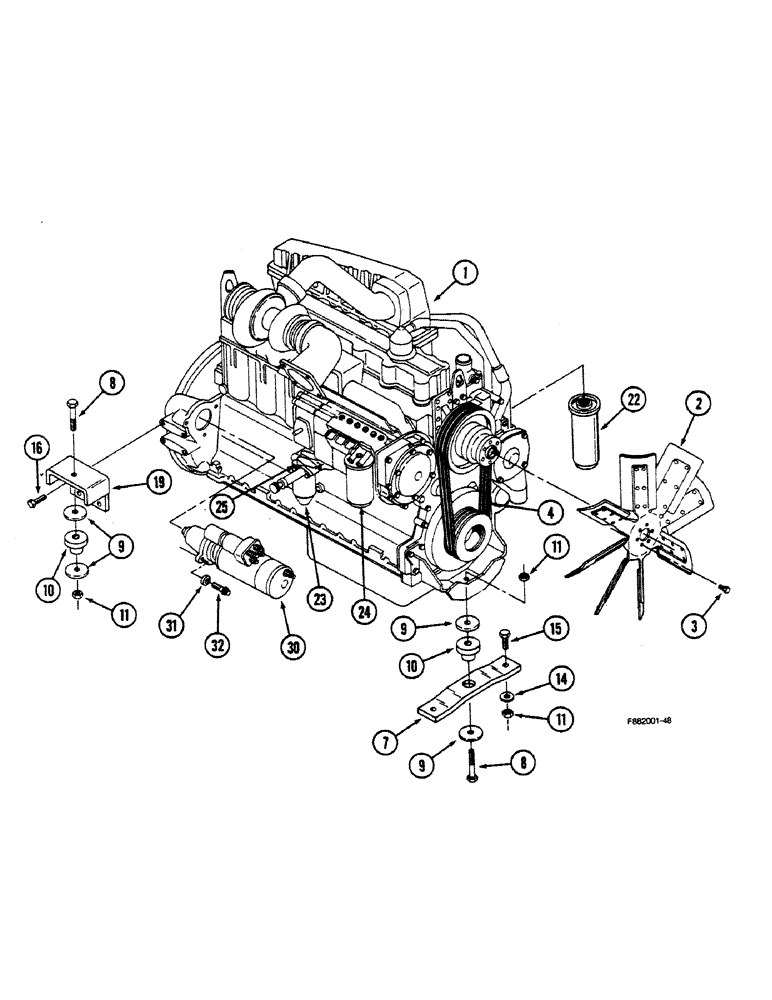

Запчасти Case IH 9150 (2-66) - ENGINE MOUNTING, 3306 ENGINE (02) - ENGINE

1

90-6819T1

ENGINE

ASSEMBLY - 3306 DITA, 280 horsepower

1шт.

2

90-4672T1

FAN

- engine, 280 horsepower

1шт.

3

19-657

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, grade 8

6шт.

4

90-4664T1

V-BELT,0.53" W x 57.60" L

Fan, Set of 3 0.53" W x 57.60" L

1шт.

7

90-6398T1

MOUNTING PARTS

MOUNT - engine, front

1шт.

8

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3шт.

9

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 3/4 x 3-3/4 x 3/16 inch

6шт.

10

47-4172

SHOCK ABSORBER

MOUNT - isolator, rubber

3шт.

11

19-85

LOCK NUT

- hex, lock, 3/4 inch NC

5шт.

14

19-112

WASHER,3/4"

- flat, 3/4 x 2 x 9/64 inch

2шт.

15

19-67

SCREW,Hex, 3/4"-10 x 2 1/4", G5

BOLT - hex, 3/4 NC x 2-1/4 inch

2шт.

16

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

8шт.

19

70-4619T1

MOUNTING PARTS

MOUNT - engine, right side

1шт.

19

70-4618T1

MOUNTING PARTS

MOUNT - engine, left side

1шт.

22

28-36

FILTER

- oil, engine

1шт.

23

28-25

ELEMENT

FILTER - fuel, secondary

1шт.

24

6-1374

ELEMENT

FILTER - fuel, primary

1шт.

25

6-1373

GASKET

- filter

1шт.

30

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See figure 4-36 - 4-42)

1шт.

31

19-912

WASHER

- flat, 5/8 x 1-3/16 x 3/16 inch

3шт.

32

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - 12 point, 5/8 NC x 2 inch, grade 8

3шт.
