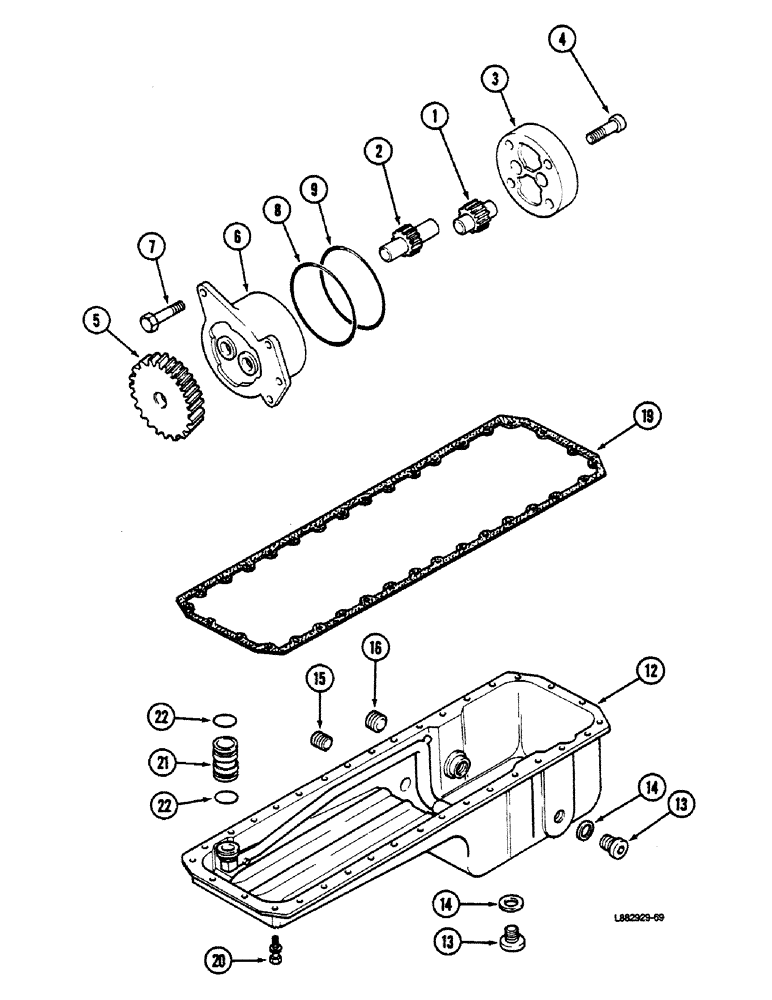

Запчасти Case IH 9150 (2-62) - OIL PUMP AND OIL PAN, L-10 ENGINE (02) - ENGINE

3801894

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine lubricating, Includes: Ref. 1 - 9

1шт.

1

3025124

GEAR

AND SHAFT ASSEMBLY - driven

1шт.

2

3025123

GEAR

AND SHAFT ASSEMBLY - drive

1шт.

3

3818686

COVER

- oil pump

1шт.

4

3610503

CAP

BOLT - socket head, M8 x 1.25 x 20 mm

4шт.

5

3038992

GEAR

- drive, oil pump

1шт.

6

3818688

BODY

- oil pump

1шт.

7

3025802

CAP

BOLT - hex, M8 x 1.25 x 20 mm

3шт.

8

3033248

RING

O-RING - oil pump

1шт.

9

3033247

RING

O-RING - oil pump

1шт.

12

3036887

PAN

ASSEMBLY - engine oil, Includes: Ref. 13 - 16

1шт.

13

3055069

PLUG

- threaded, drain

2шт.

14

67946

WASHER

- flat

2шт.

15

A77429

PLUG

- hex socket pipe, 1/2 inch PT (Order from J.I. Case)

1шт.

Order all parts except Ref. 15 and 16.

1шт.

16

A77533

PLUG

- hex, 1 inch PT (Order from J.I. Case)

1шт.

Order all parts except Ref. 15 and 16.

1шт.

19

3818842

GASKET

- oil pan

1шт.

20

3818060

CAP,Hex, M10 x 1.5 x 25mm

BOLT - hex, M10 x 1.50 x 25 mm

32шт.

21

3033072

TUBE

- oil transfer

1шт.

22

3032787

RING

O-RING - transfer tube

2шт.
