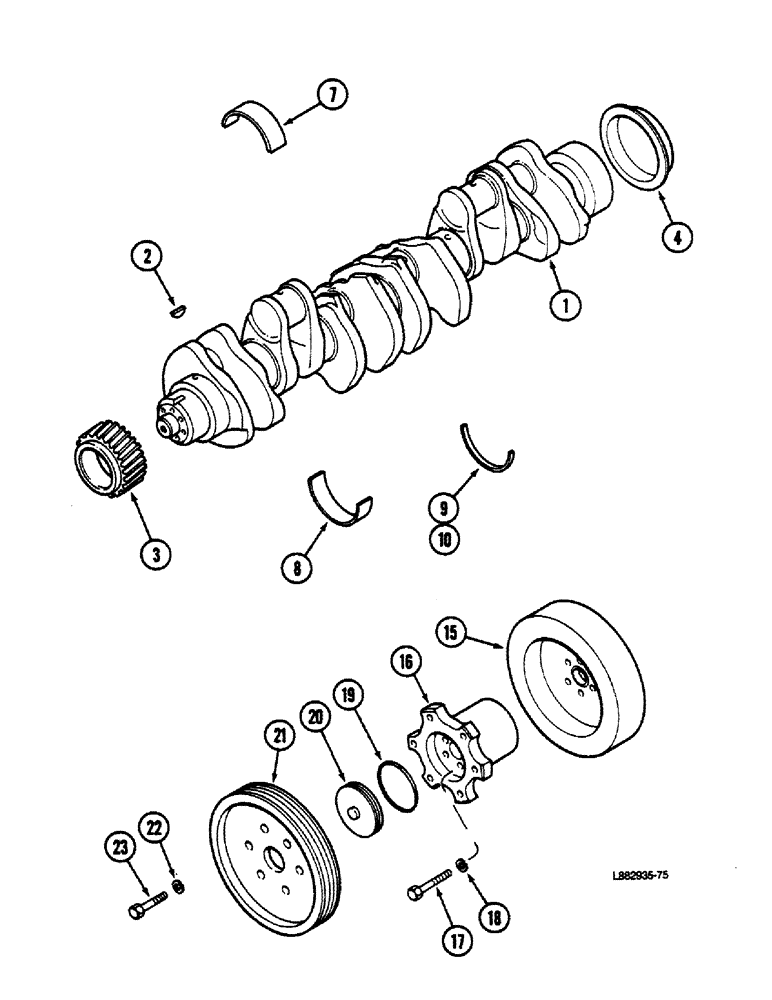

Запчасти Case IH 9150 (2-56) - CRANKSHAFT, L-10 ENGINE (02) - ENGINE

1

3027931

CRANKSHAFT

- engine

1шт.

2

S300

KEY

- crankshaft, Woodruff

1шт.

3

3038984

GEAR

- crankshaft

1шт.

4

3819774

SLEEVE

- wear, rear oil seal

1шт.

3801150

BEARING SET

BEARING KIT - upper and lower, standard, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - main, upper, standard

7шт.

8

NSS

NOT SOLD SEPARAT

BEARING - main, lower, standard

7шт.

9

3822062

BEARING, THRUST

BEARING - thrust, no. 4

4шт.

3801151

BEARING SET

BEARING KIT - main, upper and lower, 0.010 inch oversize, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - main, upper, 0.010 inch oversize

7шт.

8

NSS

NOT SOLD SEPARAT

BEARING - main, lower, 0.010 inch oversize

7шт.

9

3822062

BEARING, THRUST

BEARING - thrust, no. 4

4шт.

3801152

BEARING SET

BEARING KIT - main, upper and lower, 0.020 inch oversize, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - main, upper, 0.020 inch oversize

7шт.

8

NSS

NOT SOLD SEPARAT

BEARING - main, lower, 0.020 inch oversize

7шт.

9

3822062

BEARING, THRUST

BEARING - thrust, no. 4

4шт.

3801153

BEARING SET

BEARING KIT - main, upper and lower, 0.030 inch oversize, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - main, upper, 0.030 inch oversize

7шт.

8

NSS

NOT SOLD SEPARAT

BEARING - main, lower, 0.030 inch oversize

7шт.

9

3822062

BEARING, THRUST

BEARING - thrust, no. 4

4шт.

3801154

BEARING SET

BEARING KIT - main, upper and lower, 0.040 inch oversize, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - main, upper, 0.040 inch oversize

7шт.

8

NSS

NOT SOLD SEPARAT

BEARING - main, lower, 0.040 inch oversize

7шт.

9

3822062

BEARING, THRUST

BEARING - thrust, no. 4

4шт.

10

3050589

BEARING, THRUST

BEARING - thrust, 0.010 inch oversize

4шт.

15

3511829

SHOCK ABSORBER

DAMPER - vibration

1шт.

16

3046414

ADAPTER

- crankshaft, vibration damper

1шт.

17

3027691

CAP

BOLT - hex, M12 x 1.25 x 130 mm, vibration damper

6шт.

18

3026269

WASHER

- flat, 12 mm, vibration damper

6шт.

19

145563

RING

O-RING - plug, vibration damper

1шт.

20

3819299

PLUG

- pulley, vibration damper

1шт.

21

3046205

PULLEY

- crankshaft, vibration damper

1шт.

22

3009330

WASHER

- flat, 10 mm, vibration damper

6шт.

23

3034836

CAP

BOLT - hex, M10 x 1.50 x 30 mm, vibration damper

6шт.
