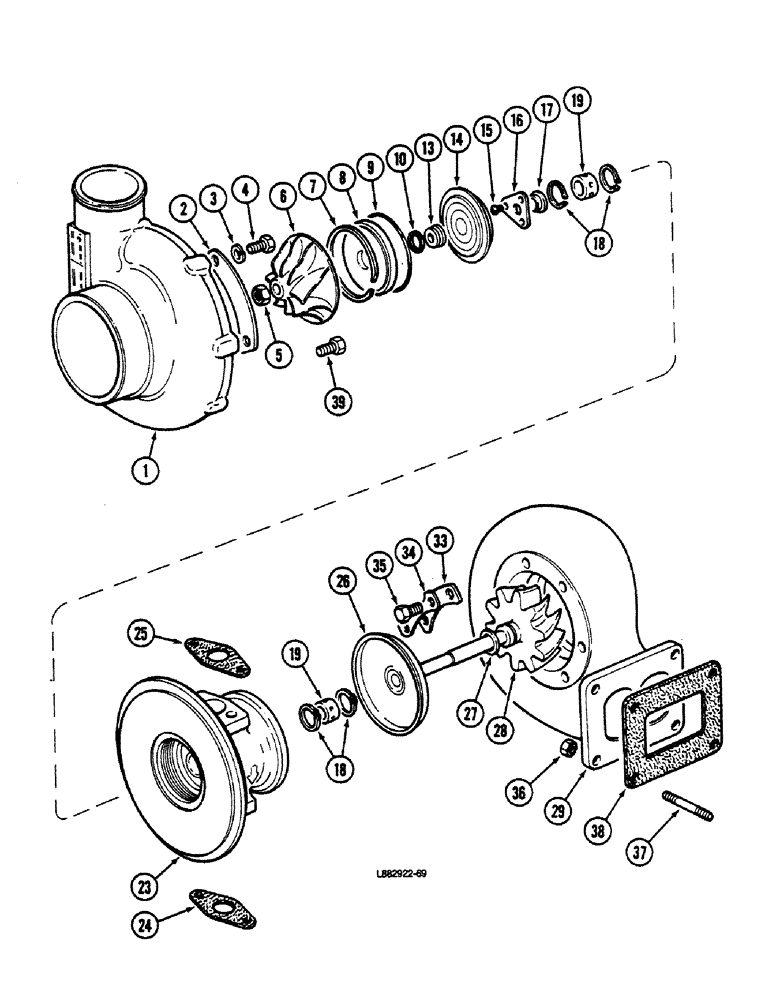

Запчасти Case IH 9150 (2-38) - TURBOCHARGER, L-10 ENGINE (02) - ENGINE

3801489

TURBOCHARGER

ASSEMBLY - engine, Includes: Ref. 1 - 38

1шт.

1

3503291

HOUSING

- compressor

1шт.

2

3502734

PLATE

- clamping

4шт.

3

3518004

LOCK WASHER

WASHER - lock, 6 mm

8шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

4

NSS

NOT SOLD SEPARAT

BOLT - hex, M6 x 1.0 x 12 mm, Order Ref. 39

8шт.

5

3760250

LOCK NUT

NUT - lock

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

6

3503305

ASSEMBLY

IMPELLER - turbocharger

1шт.

7

3762449

RING, SNAP

RING - retaining

1шт.

8

3762564

PLATE

- oil seal

1шт.

9

3762915

RING

SEAL - plate

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - split ring, Order kit 3504702

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

13

3502231

SLEEVE

SLINGER - oil

1шт.

14

3503668

MAKING-UP

BAFFLE - oil

1шт.

15

3503347

MAKING-UP

BOLT - flat head, M5 x 0.80 x 16 mm

3шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - thrust, Order kit 3504702

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

17

3523542

COLLAR

- thrust

1шт.

18

NSS

NOT SOLD SEPARAT

RING - retaining, Order kit 3504702

4шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - turbocharger, Order kit 3504702

2шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

23

3525199

HOUSING, BEARING

HOUSING - bearing

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET - turbocharger, Order kit 3504702

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

25

3755739

GASKET

- oil inlet

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

26

3503348

HARDWARE

SHIELD - heat

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - split ring, Order kit 3504702

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

28

3522232

WHEEL ASSEMBLY - shaft

1шт.

29

3504692

HOUSING

- turbocharger

1шт.

33

3502017

PLATE

- clamping

3шт.

34

3709774

MAKING-UP

PLATE - lock

3шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

35

3759917

SET SCREW,Hex, M8 x 1.25 x 12mm

BOLT - hex, M8 x 1.25 x 12 mm

6шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

36

3818824

NUT

- hex

4шт.

37

3818823

STUD

- turbocharger

4шт.

38

3755843

GASKET

- turbocharger

1шт.

Part of Turbocharger Repair Kit, P/N 3504702

1шт.

3504702

KIT

TURBOCHARGER KIT - repair, Includes: Ref. 3, 5, 9, 10, 15, 16, 18, 19, 24, 25, 27, 34, 35 and 38, Includes: Ref. 39

1шт.

39

3759526

CAP,Hex, M6 x 12mm

BOLT - hex, M6 x 1.0 x 12 mm

8шт.
