Запчасти Case IH 9150 (2-32) - EXHAUST SYSTEM (02) - ENGINE

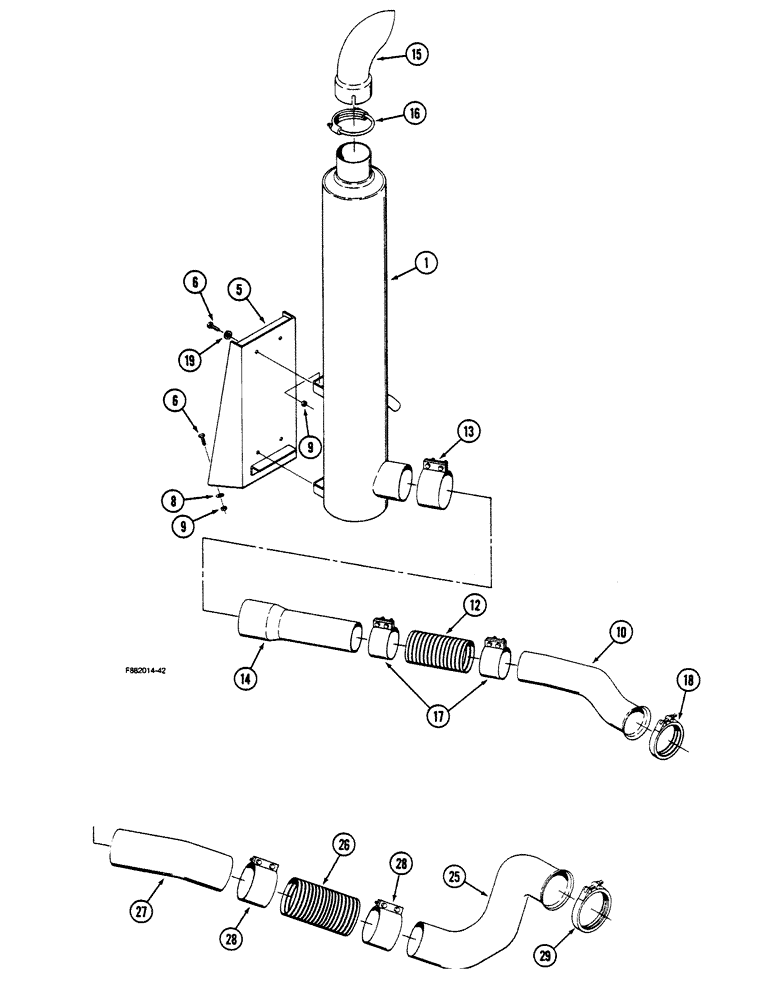

Схема запчастей Case IH 9150 - (2-32) - EXHAUST SYSTEM (02) - ENGINE
12
10
1
9
27
5
16
6
28
9
13
28
8
29
6
15
19
18
17
26
25
14

Артикул

Название

Примечание

Количество

1

90-5708T2

MUFFLER

- exhaust, 235 horsepower

1шт.

90-5708T2 MUFFLER FOR 235 HP CAT. ENGINE 90-5709T2 MUFFLER FOR 280 HP CUMMINS Eng-p/qc comments....

1шт.

1

90-5709T2

MUFFLER

- exhaust, 260 horsepower

1шт.

90-5708T2 MUFFLER FOR 235 HP CAT. ENGINE 90-5709T2 MUFFLER FOR 280 HP CUMMINS Eng-p/qc comments....

1шт.

5

90-5779T2

SUPPORT

- muffler

1шт.

6

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

8шт.

8

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

9

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

8шт.

10

90-6547T1

EXHAUST SYSTEM PIPE,4" OD

TUBE - exhaust, L-10 engine

1шт.

12

90-5858T1

TUBE,4" ID x 4.25" OD x 9" L

- flex, exhaust, L-10 engine

1шт.

13

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY - exhaust

1шт.

14

90-5860T1

TUBE,4" - 5" OD x 18.38" L

- exhaust, L-10 engine

1шт.

15

90-5796T1

PIPE, EXHAUST SYSTEM

STACK - exhaust, muffler

1шт.

16

31-1537

MOUNTING CLIP

CLAMP ASSEMBLY - stack

1шт.

17

31-2465

CLAMP

ASSEMBLY - exhaust

2шт.

18

90-3606T1

CLAMP,120.65mm

CLAMP - exhaust, 120.65mm

1шт.

19

19-1059

WASHER

- flat, hardened, 3/8 x 1-1/4 x 7/64 inch

4шт.

25

90-6405T1

EXHAUST SYSTEM PIPE,5" OD

TUBE - exhaust, 3306 engine

1шт.

26

45-177

TUBE

- flex, exhaust, 3306 engine

1шт.

27

90-5782T1

TUBE,5" OD x 18.4" L

- exhaust, 3306 engine

1шт.

28

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY - exhaust

2шт.

29

31-1316

MOUNTING CLIP

CLAMP - exhaust

1шт.

Выбрано товаров: 22
