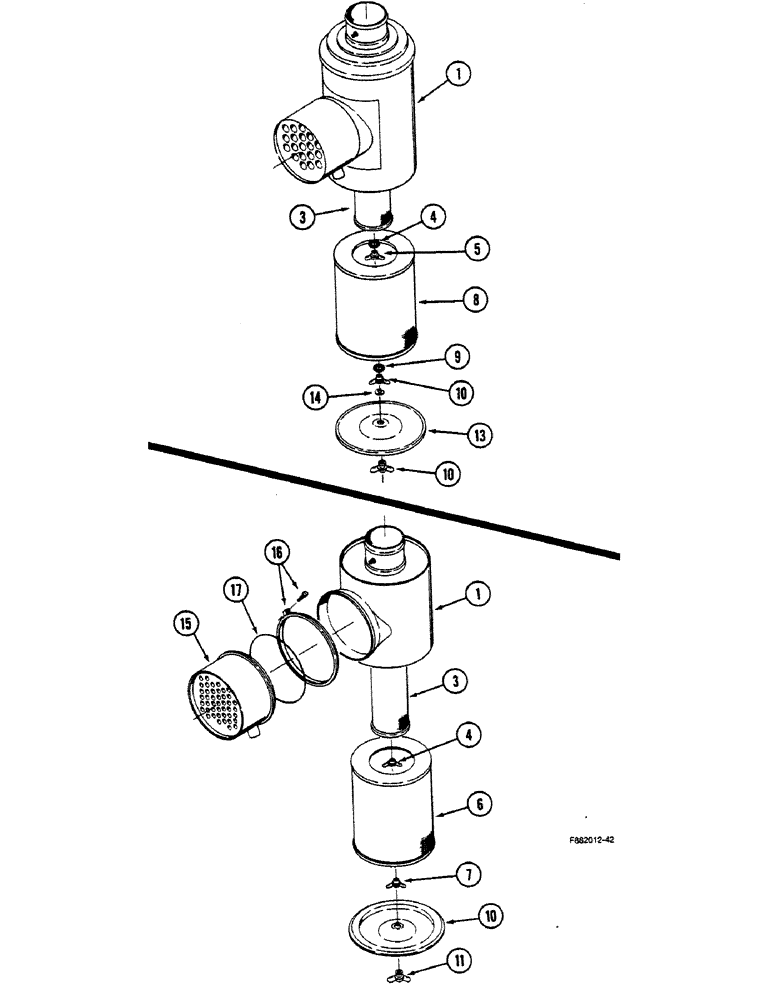

Запчасти Case IH 9150 (2-28) - AIR CLEANER ASSEMBLY, 14 INCH NELSON (02) - ENGINE

90-6314T91

AIR CLEANER

ASSEMBLY - engine, 14 inch, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

90-6018T1

AIR CLEANER

ELEMENT - secondary

1шт.

4

33-1385T1

SEAL

- wing nut

1шт.

5

33-1384T1

NUT, WING

NUT - wing

1шт.

8

90-6017S1

AIR CLEANER

ELEMENT - primary (500 hour change interval)

1шт.

8

90-6017T1

AIR CLEANER

ELEMENT - primary (1000 hour change interval)

1шт.

9

33-1388T1

SEAL

- wing nut

1шт.

10

33-1387T1

WING NUT

NUT - wing

2шт.

13

33-1386T1

COVER

- air cleaner

1шт.

14

33-1389T1

RING, SNAP

RING - snap

1шт.

90-4679T91

AIR CLEANER

ASSEMBLY - engine, 14 inch, donaldson, Includes: Ref. 1 - 11

1шт.

90-6345T91

AIR CLEANER

ASSEMBLY - engine, without precleaner, 14 inch donaldson, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, assembly 14 inch donaldson

1шт.

3

90-6018T1

AIR CLEANER

ELEMENT - secondary, assembly 14 inch donaldson

1шт.

4

7-1006

NUT

- wing, air cleaner assembly 14 inch donaldson

1шт.

6

90-6017S1

AIR CLEANER

ELEMENT - primary (500 hour change interval), assembly 14 inch donaldson

1шт.

6

90-6017T1

AIR CLEANER

ELEMENT - primary (1000 hour change interval), assembly 14 inch donaldson

1шт.

7

45-218

NUT

- wing, air cleaner assembly 14 inch donaldson

1шт.

90-6342T91

COVER ASSY

COVER ASSEMBLY - air cleaner (Order 90-4205T91), 14 inch donaldson, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - air cleaner, assembly 14 inch donaldson

1шт.

11

90-5924T1

NUT

- wing, air cleaner assembly 14 inch donaldson

1шт.

15

90-6343T1

PRECLEANER

ASSEMBLY - air cleaner, 14 inch donaldson

1шт.

16

90-6344T1

CLAMP

ASSEMBLY - precleaner, 14 inch donaldson

1шт.

17

9-40

O-RING,10.62" ID x 0.27" Width

- seal, precleaner, assembly 14 inch donaldson

1шт.
