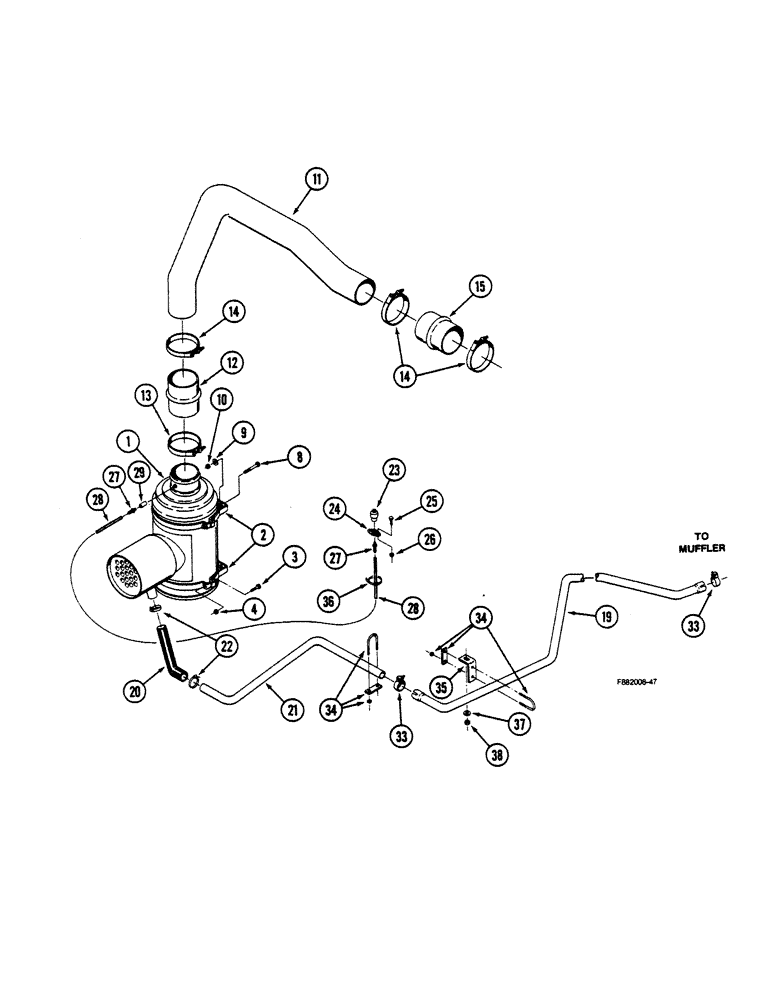

Запчасти Case IH 9150 (2-26) - AIR INDUCTION SYSTEM, 3306 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - engine (See Figure 2-28)

1шт.

2

90-3871T1

CLIP

BAND - mounting, air cleaner, Includes: Ref. 3 and 4

1шт.

3

19-9

BOLT,5/16" - 18 x 2", Gr 5

- hex, 5/16 NC x 2 inch

2шт.

4

19-508

LOCK NUT

- hex, lock, 5/16 inch NC

2шт.

8

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

9

25846R1

WASHER

- flat, 7/16 x 1-1/4 x 5/64 inch

4шт.

10

19-79

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

11

90-6353T1

AIR INTAKE TUBE,5 mm OD

TUBE - air induction, air cleaner to engine

1шт.

12

9-61

HOSE,5.00" ID, 6.00" ID ID x, 6.00"

Coupling, Air Cleaner to Tube 5.00" ID, 6.00" ID ID x, 6.00"

1шт.

13

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

- hose, 6-1/4 to 6-9/16 inch

1шт.

14

32-128

CLAMP,#140, 5.25"-5.56", T-Bolt

- hose, 5-1/4 to 5-9/16 inch

3шт.

15

9-13

HOSE,5.00 mm ID

Coupling, Tube to Engine

1шт.

19

90-5843T1

TUBE,1.5" OD

- aspirator, tube to muffler

1шт.

20

31-2731

HOSE,8.00"

1.50" ID x , Aspirator; Order 31-2730T1, and Cut to Required Length 8.00"

1шт.

21

90-6755T1

TUBE,1.5" OD x 29.09" L

- aspirator, air cleaner to tube

1шт.

22

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

23

A59569

INDICATOR

- service, air filter

1шт.

24

90-4681T1

FLANGE

MOUNT - indicator

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

27

31-2388

FITTING

CONNECTOR - straight, 1/8 NPT x 3/16 inch hose

2шт.

28

31-2389

HOSE

- indicator, 3/16 x 40 inch

1шт.

29

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

CONNECTOR - straight, 1/8 NPT x 1/8 inch NPT

1шт.

33

31-2434

CLAMP

- tube

2шт.

34

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

ASSEMBLY - 5/16 NC x 1-3/4 x 3 inch

2шт.

35

70-4608T1

MOUNTING PARTS

MOUNT - u-bolt

1шт.

36

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

37

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

1шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
