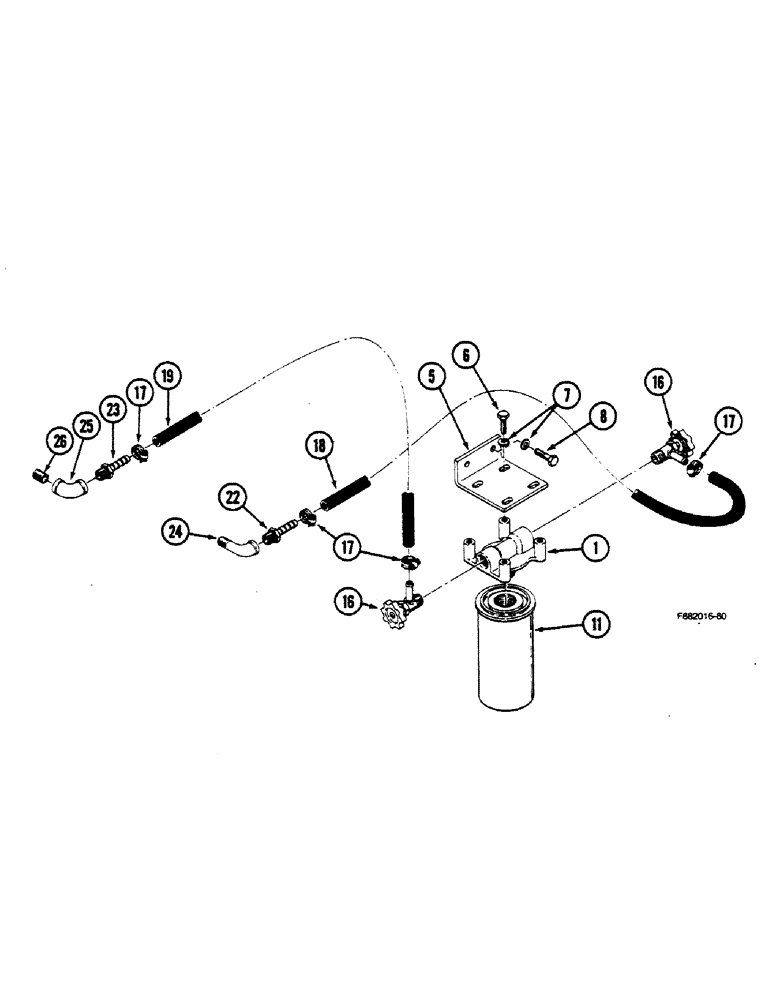

Запчасти Case IH 9150 (2-22) - WATER FILTER AND MOUNTING, 3306 ENGINE (02) - ENGINE

35-1624T91

SET OF PARTS

FILTER KIT - water conditioner, Includes: Ref. 1, 5, 6 - 8, 11, 16 - 19 and 22 - 26

1шт.

1

1-1612

HEAD

HOUSING - water filter

1шт.

5

90-3550T1

BRACKET

- mounting, filter housing

1шт.

6

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

4шт.

7

19-117

LOCK WASHER,3/8"

3/8"

6шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

28-31

FILTER

- coolant conditioner

1шт.

Use the precharged filter element only when the cooling system has been flushed or drained and new coolant added. The precharged filter is included with this filter kit.

1шт.

11

1-7834

FILTER

- coolant conditioner, precharged

1шт.

16

1-1610

VALVE

- shutoff

1шт.

17

32-29

HOSE CLAMP

CLAMP - hose, 7/16 to 3/4 inch

4шт.

18

31-1208

HOSE,0.38" ID x 12.00"

coolant, (Order 32-12 and cut to length) 0.38" ID x 12.00"

1шт.

19

31-1691

FUEL HOSE

HOSE - coolant, 3/8 x 42 inch (Order 31-2308 and, Serial Range: cut-length)

1шт.

22

31-218

CONNECTING ROD

CONNECTOR - straight, 3/8 NPT x 3/8 inch

1шт.

23

31-314

FITTING

CONNECTOR - straight, 1/4 NPT x 3/8 inch

1шт.

24

31-219

ELBOW

- 90 degree, 3/8 NPT x 3/8 inch NPT

1шт.

25

31-41

ELBOW

- 90 degree, 1/4 NPT x 1/4 inch NPT

1шт.

26

31-160

NIPPLE, LUBE

CONNECTOR - straight, 1/4 NPT x 7/8 inch

1шт.
