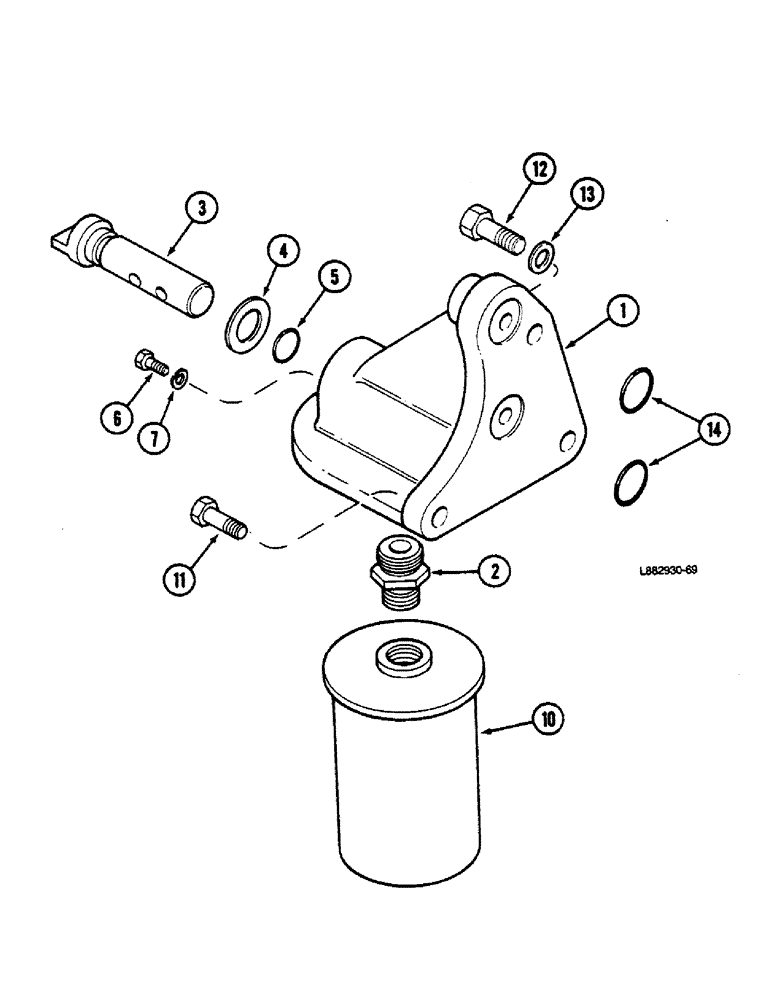

Запчасти Case IH 9150 (2-20) - WATER FILTER, L-10 ENGINE (02) - ENGINE

3819767

HEAD

ASSEMBLY - water filter, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - water filter

1шт.

2

206963

ADAPTER

- filter

1шт.

3

3818849

SHAFT

- shutoff valve

1шт.

4

205363

SPRING WASHER

WASHER - lock

1шт.

5

3818885

RING

O-RING - valve shaft

1шт.

6

3202049

CAP

BOLT - hex, M6 x 1.0 x 12 mm

1шт.

7

3042327

WASHER, LOCK

WASHER - lock, 6 MM

1шт.

10

A77543

FILTER

ELEMENT - filter, water (Order from J.I. Case)

1шт.

Order all parts except Ref. 10.

1шт.

11

3821846

CAP,Hex, M10 x 1.5 x 30mm

BOLT - hex, M10 x 1.50 x 35 mm

2шт.

12

3017499

CAP

BOLT - hex, M10 x 1.50 x 65 mm

1шт.

13

3009330

WASHER

- flat, 10 mm

1шт.

14

3819751

RING

O-RING - filter head

2шт.
