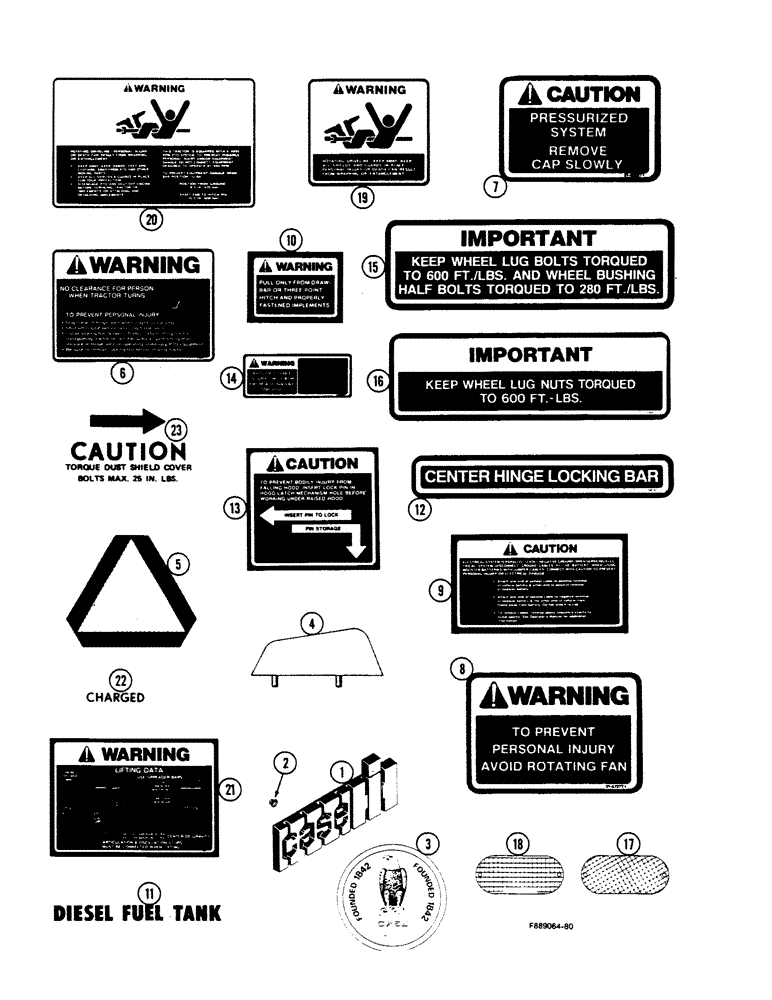

Запчасти Case IH 9150 (9-114) - A181900 DECALS (09) - CHASSIS/ATTACHMENTS

1

A181900

EMBLEM

- front grille

1шт.

1

A181538

EMBLEM CASE/IH

EMBLEM - overhead console, adhesive backed

1шт.

2

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self thread, 1/4 inch (Emblem to grille)

2шт.

3

A180055

CAP ASSY.

INSERT - steering wheel

1шт.

4

2-4587T2

HOOD

MEDALLION - hoodsight

1шт.

9420182

NUT

- self thread, 3/16 inch (Medallion to hood, not shown)

2шт.

5

26-8

EMBLEM CASE/IH

DECAL - slow moving vehicle, adhesive backed)

1шт.

5

26-1

TRAFFIC SIGN

DECAL - slow moving vehicle, metal plate backed

1шт.

19-1061

SELF-TAP SCREW,Flg, 1/4" x 3/8"

SCREW - tapping, flanged head, 1/4 NC x 3/8 inch (Decal to mounting bracket, not shown)

2шт.

6

2-6876T1

DECAL

- center hinge

2шт.

7

1-6063T1

DECAL

- pressurized system

1шт.

8

1-5727T1

DECAL

- fan

2шт.

9

2-6875T1

DECAL

- booster battery

1шт.

10

1-5726T1

DECAL

- implement attachment

1шт.

11

26-242T1

DECAL

- diesel fuel tank

1шт.

12

2-6874T1

DECAL

- locking bar, articulation

1шт.

13

2-7279T1

DECAL

- hood pin (Replaces 3-7279T1)

1шт.

14

2-6940T1

DECAL

- starter

1шт.

15

2-7215T1

DECAL

- wheel bolts, adjustable axle

1шт.

16

2-5348T1

ADHESIVE

DECAL - wheel bolts, non-adjustable axle

1шт.

17

1-2655T1

REFLECTOR

- red

2шт.

18

22-832T1

REFLECTOR

- amber

2шт.

19

2-7126T1

DECAL

- driveshaft

2шт.

20

2-7125T1

DECAL

- PTO safety

1шт.

21

2-7239T1

DECAL

- lifting data

1шт.

22

26-310

DECAL

- charged compressor

1шт.

23

26-304

DECAL

- dust shield, compressor

1шт.
