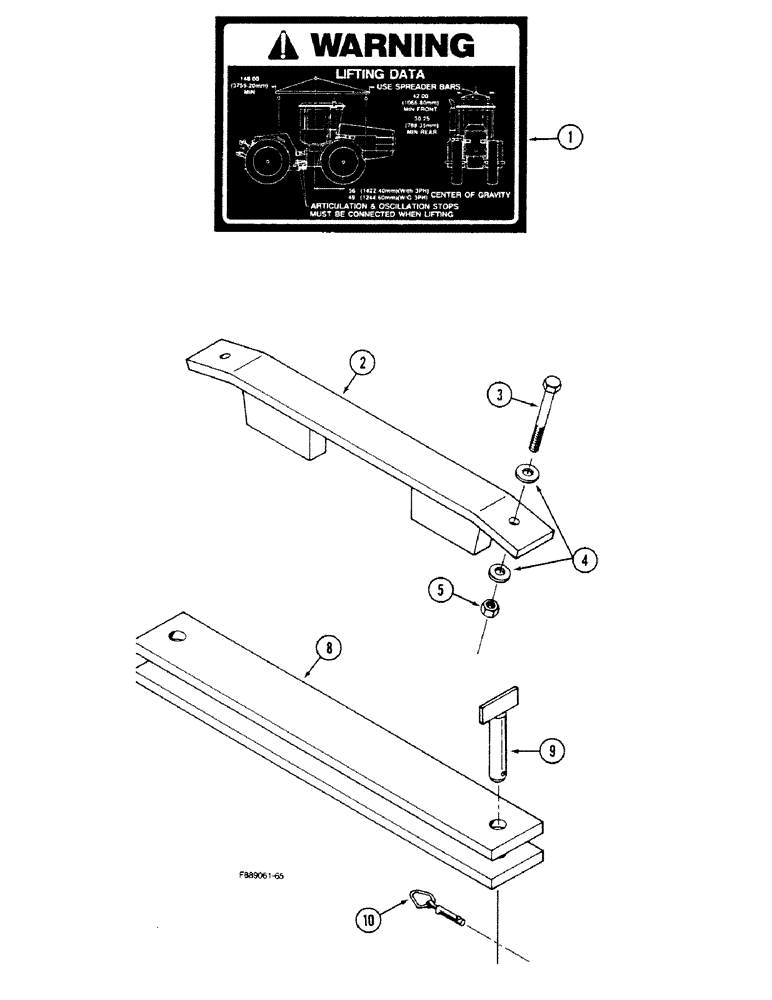

Запчасти Case IH 9150 (9-110) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

1

2-7239T1

DECAL

- lifting data

2шт.

2

70-4414T1

STOP

- oscillation

1шт.

3

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

4

19-107

WASHER

- flat, 3/8 inch

4шт.

5

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 inch NC

2шт.

8

70-4419T1

LINK

- articulation stop

1шт.

9

2-7398T1

PIN

- link

2шт.

10

19-345

PIN

- klik

2шт.
