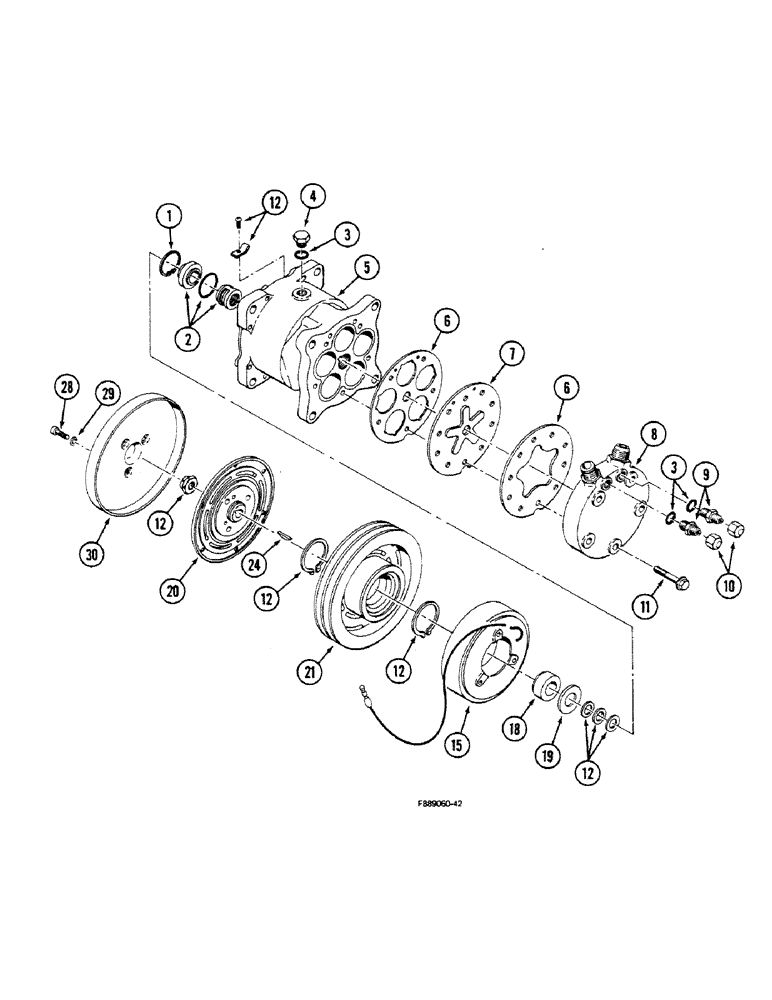

Запчасти Case IH 9150 (9-108) - AIR CONDITIONING, COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

60-2921T91

COMPRESSOR

ASSEMBLY - air conditioning, complete, Includes: Ref. 1 - 24 and body assembly

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

9150 CASE IH STEIGER 4WD TRACTOR (PRIOR TO S/N JCB0003600) (12/86-6/89), Reman for New P/N 60-2921T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

ASSEMBLY - compressor, Includes: Ref. 1 - 12

1шт.

1

1-2435

RING, SNAP

RING - snap

1шт.

2

60-3091T1

SEAL KIT

SEAL KIT - compressor

1шт.

3

1-2437

O-RING

- plug, oil fill and service ports

3шт.

4

A49667

PLUG

- oil fill

1шт.

5

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - compressor

1шт.

6

60-3092T91

PLATE

ASSEMBLY - valve

1шт.

7

25-231

GASKET KIT

KIT - valve body

1шт.

8

60-3093T1

HEAD (CYLINDER)

HEAD - cylinder (Includes: Ref. 7)

1шт.

9

1-2440

FITTING

VALVE ASSEMBLY - service port

2шт.

10

1-2441

CAP

- service port

2шт.

11

1-2438

SCREW,Hex Flg Hd

BOLT - hex, flanged head

5шт.

12

60-3095T1

SET OF WASHERS

ACCESSORY KIT - clutch

1шт.

15

25-237T1

COIL ASSY.

COIL - pulley actuating, 12 volt (Replaces 25-237)

1шт.

1-3759

CLUTCH HOUSING

CLUTCH ASSEMBLY - compressor, Includes: Ref. 18 - 21

1шт.

18

35-1064

BEARING ASSY

KIT - clutch, Includes: Ref. 19

1шт.

19

1-3760

BEARING

SEAL - dust, bearing

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY - clutch

1шт.

24

60-4839T1

BUCKET TOOTH KEY

KEY - shaft, compressor

1шт.

28

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - socket head, 1/4 NC x 1/2 inch, grade 8

3шт.

29

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch

3шт.

30

25-194T1

SHIELD

- dust (Replaces 25-194)

1шт.

31

26-304

DECAL

- dust shield (Not shown)

1шт.
