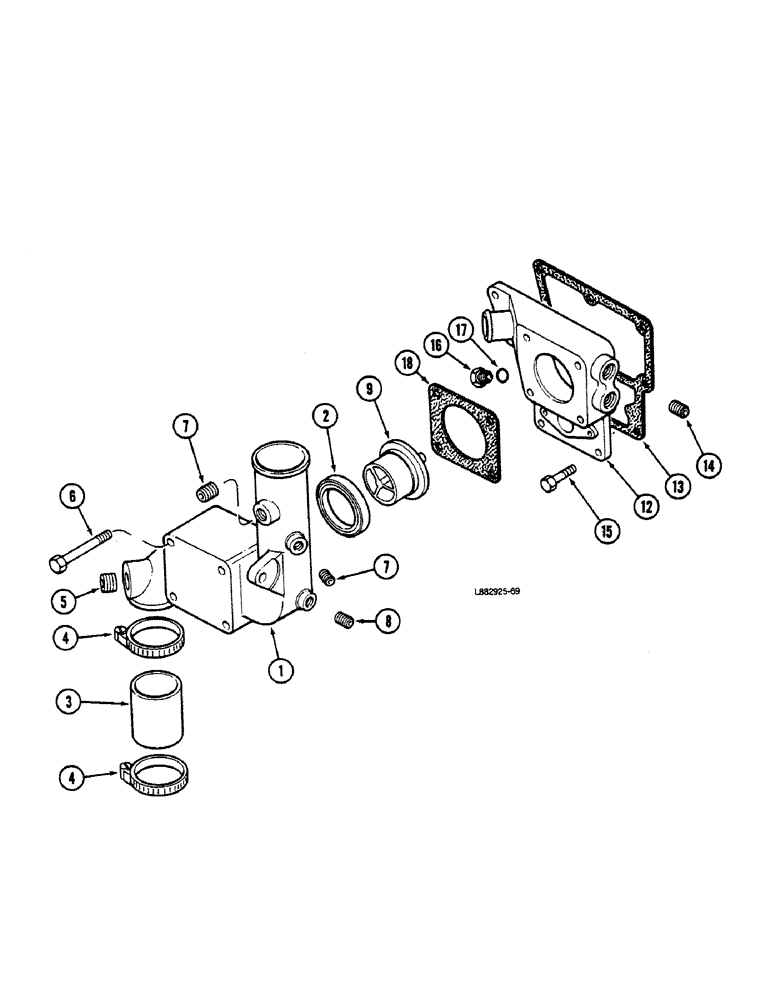

Запчасти Case IH 9150 (2-18) - THERMOSTAT HOUSING, L-10 ENGINE (02) - ENGINE

3818418

HOUSING

ASSEMBLY - thermostat, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - thermostat

1шт.

2

186780

SEAL

- housing

1шт.

3

3818272

HOSE

- plain

1шт.

4

43828B

COLLAR

CLAMP - hose

2шт.

5

A77505

PLUG

- hex socket, 3/4 - 14 inch PT (Order from J.I. Case)

1шт.

6

3022502

CAP

BOLT - hex, M10 x 1.50 x 145 mm

4шт.

7

A77429

PLUG

- hex socket, 1/2 inch PT (Order from J.I. Case)

2шт.

8

A77427

PLUG

- hex socket, 1/8 inch PT (Order from J.I. Case)

1шт.

9

201737

THERMOSTAT

- coolant, 180 degree F

1шт.

12

3819294

SUPPORT

- housing, thermostat

1шт.

13

3027436

GASKET

- housing support

1шт.

14

3013786

HOSE

- pipe, 3/8 inch

1шт.

15

3335045

CAP

BOLT - hex, M10 x 1.50 x 35 mm

4шт.

3037536

PLUG

ASSEMBLY - threaded, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG - threaded

1шт.

17

3037537

RING

SEAL - plug

1шт.

18

3818841

GASKET

- thermostat housing

1шт.
