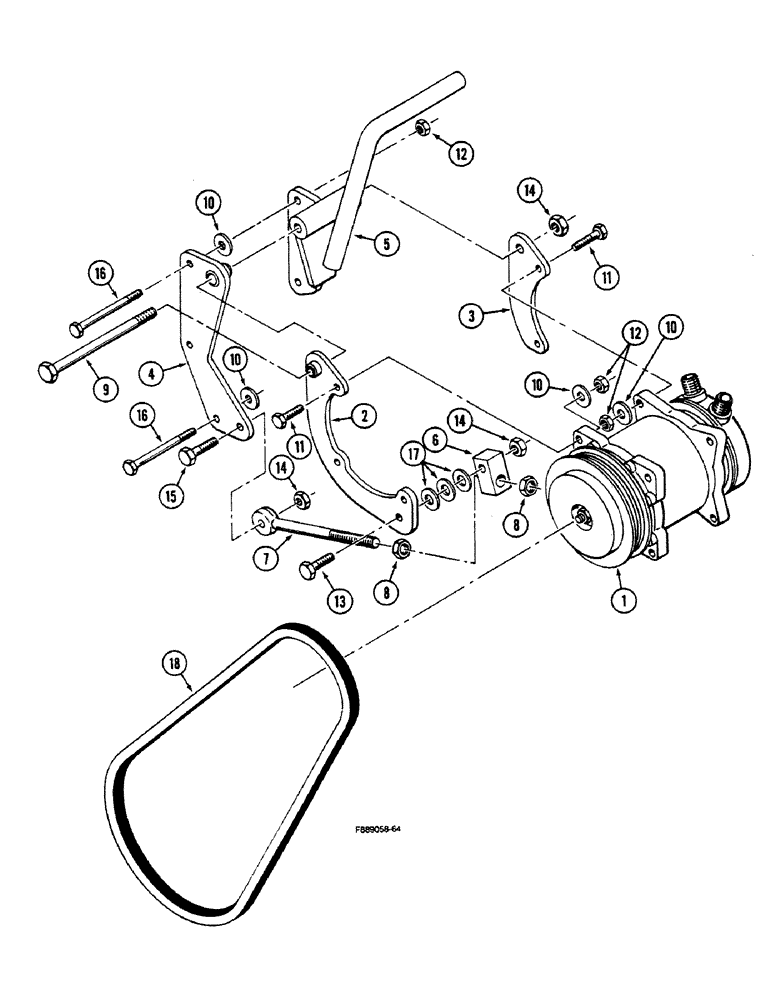

Запчасти Case IH 9150 (9-104) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, L-10 ENGINE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9-108)

1шт.

2

90-3552T1

BRACKET

- compressor pivot, front

1шт.

3

90-3554T1

SUPPORT

BRACKET - compressor pivot, rear

1шт.

4

90-3555T1

BRACKET

- pivot mounting, front

1шт.

5

90-3557T3

BRACKET

- pivot mounting, rear

1шт.

6

1-6899T1

BLOCK

- compressor belt adjusting

1шт.

7

22-1086T1

ROD

- compressor belt adjusting

1шт.

8

19-1060

JAM NUT,1/2" - 20, Gr 8

- jam, 1/2 inch NC

2шт.

9

446734

BOLT - hex, 1/2 NC x 6 inch

1шт.

10

19-107

WASHER

- flat, 3/8 inch

8шт.

11

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

BOLT - hex, M10 x 1.5 x 34 mm

5шт.

12

19-455

NUT

- M10 x 1.5

8шт.

13

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

14

19-82

LOCK NUT

- lock, 1/2 inch NC

3шт.

15

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

16

40-1078

CAPSCREW,Hex, M10 x 1.5 x 80 mm, Cl 10.9

BOLT - hex, M10 x 1.5 x 60 mm

3шт.

17

19-109

WASHER,1/2"

- flat, 1/2 inch

3шт.

18

1-6864

V-BELT,0.53" W x 39.25" L

A/C Compressor 0.53" W x 39.25" L

1шт.
