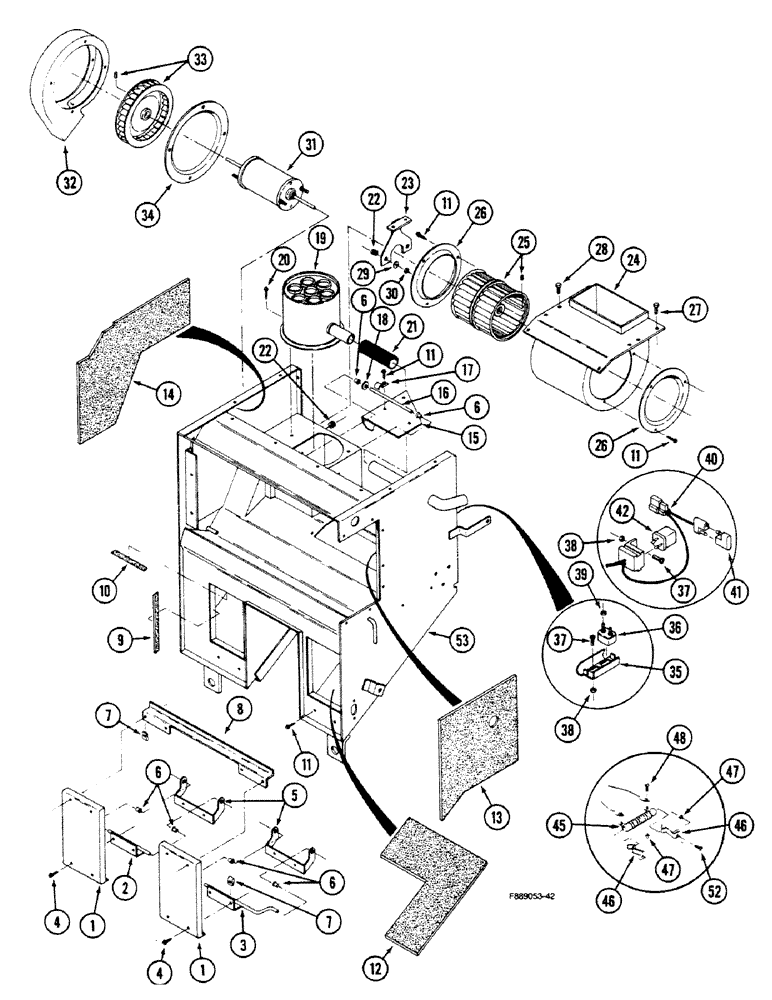

Запчасти Case IH 9150 (9-094) - AIR CONDITIONER AND HEATER MODULE, INTERNAL COMPONENTS, CAB (09) - CHASSIS/ATTACHMENTS

60-4780T91

CONTROL

MODULE ASSEMBLY - air conditioner and heater, continued from Figure 9-92, Includes: Ref. 1 - 53

1шт.

1

60-4765T1

FLAP

DOOR - air recirculation

2шт.

2

60-4761T1

THREADED ROD

ROD - recirculation door pivot

1шт.

3

60-4760T1

THREADED ROD

ROD - recirculation door actuating

1шт.

4

9419322

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - tapping, flanged head, no. 10 x 3/4 inch

8шт.

5

60-4762T1

SUPPORT

BRACKET - door pivot mount

2шт.

6

19-6129

NYLON BEARING

BEARING - flanged

6шт.

7

19-6157

STEEL SHEET NUT

NUT - clip, u-type, no. 10

8шт.

8

60-4769T1

SUPPORT

ANGLE - door mounting

1шт.

9

60-4773T1

SEAL

- recirculation door

4шт.

10

60-4774T1

SEAL

- recirculation door

2шт.

11

9419320

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - tapping, flanged head, no. 10 x 3/8 inch

16шт.

12

60-4726T1

FOAM

PAD - insulating

1шт.

13

60-4728T1

FOAM

PAD - insulating

1шт.

14

60-4730T1

FOAM

PAD - insulating

1шт.

15

60-4626T1

PANEL

DOOR - cab pressurization

1шт.

16

60-4627T1

SHAFT

- door pivot

1шт.

17

31-1870

CLAMP

CLIP - pivot shaft retaining

2шт.

18

19-6046

WASHER

- flat, nylon, 5/16 x 5/8 x 1/32 inch

2шт.

19

60-3902T1

PRECLEANER

- fresh air

1шт.

20

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

SCREW - tapping, flanged head, no. 6 x 1/4 inch

3шт.

21

31-1635

HOSE,1.00" ID x 4.00"

Precleaner 1.00" ID x 4.00"

1шт.

22

31-2451

GROMMET

- motor mounting

5шт.

23

60-4622T1

SUPPORT

BRACKET - motor mount

2шт.

24

60-4721T1

HOUSING

- blower wheel, wide

1шт.

25

60-4118T1

BLOWER,Fan

WHEEL - blower, wide

1шт.

26

60-3888T1

FLANGE

- inlet, wide wheel

2шт.

27

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

- hex, 1/4 NC x 1/2 inch

7шт.

28

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

- hex, 1/4 NC x 5/8 inch

2шт.

29

19-195

WASHER,#10

- flat, no. 10

4шт.

30

9411893

LOCK NUT,#10-32, GB

NUT - lock, no. 10 NF

4шт.

31

60-5613T1

MOTOR

- blower

1шт.

32

60-3847T1

HOUSING

- blower wheel, narrow

1шт.

33

60-4117T1

BLOWER,Fan

WHEEL - blower, narrow

1шт.

34

60-2640T1

FLANGE ASSY

FLANGE - inlet, narrow wheel

1шт.

35

20-1171T1

SUPPORT

BRACKET - mounting, circuit breaker

1шт.

36

22-673

BREAKER

CIRCUIT BREAKER - 30 ampere

1шт.

37

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

3шт.

38

19-5571

SERRATED NUT

- lock, Keps, no. 10 NC

3шт.

39

19-481

SERRATED NUT

- lock, Keps, no. 10 NF

2шт.

40

20-2376T1

HARNESS

- blower motor

1шт.

41

22-738

DIODE

- electrical, motor

1шт.

42

1-7877

RELAY

- electrical

1шт.

20-2387T91

RESISTOR

ASSEMBLY - blower motor, Includes: Ref. 45 - 48

1шт.

45

20-2374T1

RESISTOR

- electrical, blower motor

1шт.

46

20-2375T1

BRACKET

- resistor mounting

2шт.

47

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- lock, Keps, no. 8 NC

4шт.

48

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

- machine, truss head, no. 8 NC x 3/4 inch

2шт.

52

159585

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

- machine, pan head, no. 8 NC x 3/8 inch

2шт.

53

REF

INSTRUCTION

HOUSING - module (See Figure 9-92)

1шт.
