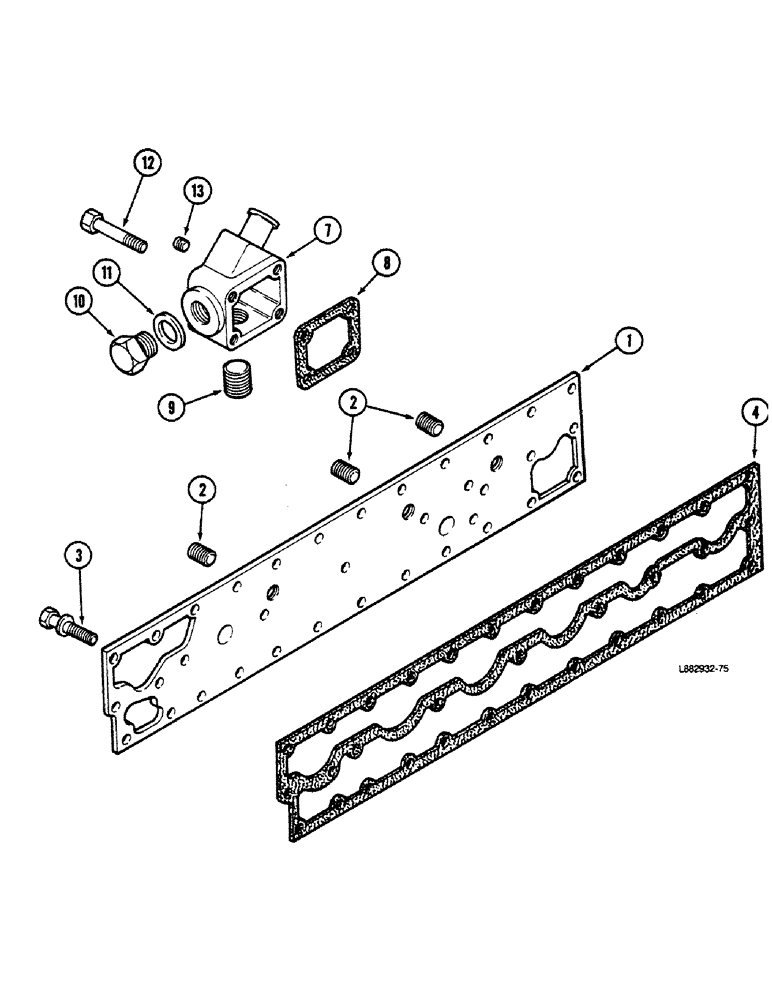

Запчасти Case IH 9150 (2-16) - OIL COOLER WATER SYSTEM, L-10 ENGINE (02) - ENGINE

3819627

COVER

ASSEMBLY - water header, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - water header

1шт.

2

A77429

PLUG

- hex socket, 1/2 inch PT (Order from J.I. Case)

3шт.

Order all parts except Ref. 2 and 9 from J.I. Case.

1шт.

3

3821847

CAP,Hex, M10 x 1.5 x 60mm, W/ Wshr

BOLT - hex with washer, M10 x 1.50 x 60 mm

18шт.

4

3819452

GASKET

- header cover

1шт.

7

3821853

HOUSING

- heater

1шт.

8

3027445

GASKET

- heater housing

1шт.

9

A77533

PLUG

- hex, 1 inch PT (Order from J.I. Case)

1шт.

Order all parts except Ref. 2 and 9 from J.I. Case.

1шт.

10

3026195

PLUG

- threaded

1шт.

11

3026156

WASHER

- flat

1шт.

12

3027472

CAP

BOLT - hex, M10 x 1.50 x 90 mm

4шт.

13

76106580

PLUG

- pipe, 3/8 inch

1шт.
