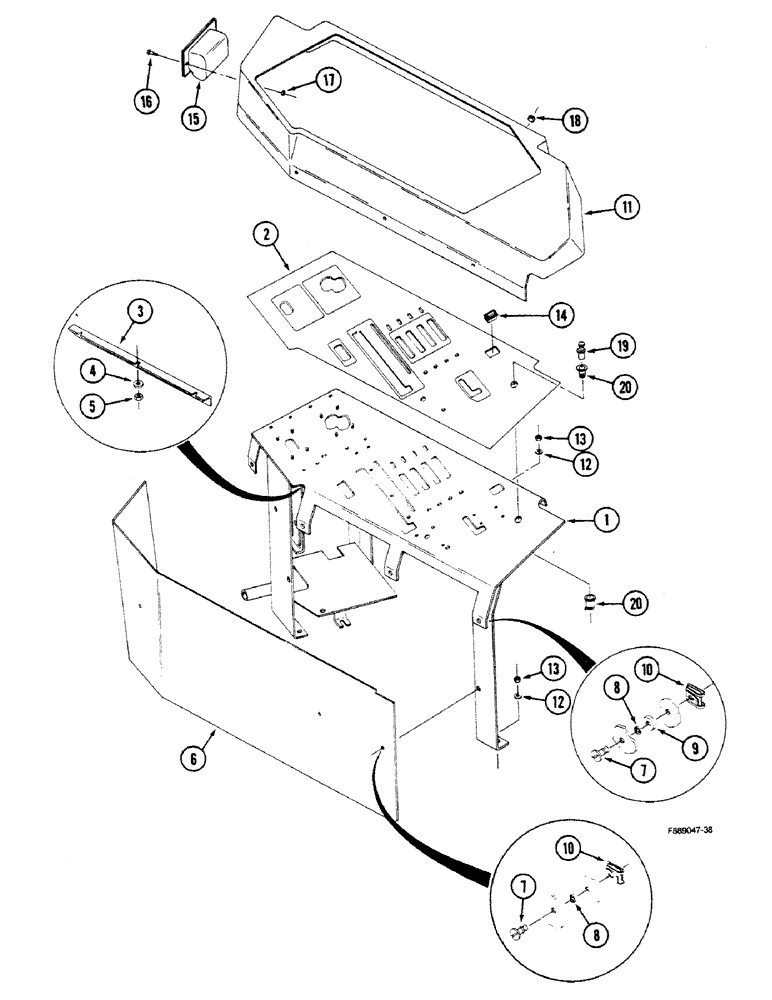

Запчасти Case IH 9150 (9-082) - CONTROL CONSOLE, ROPS (09) - CHASSIS/ATTACHMENTS

1

60-5853T1

PANEL ASSY.

PANEL - control console

1шт.

2

60-5979T1

DECAL

- control console

1шт.

3

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

4

19-195

WASHER,#10

- flat, no. 10 x 9/16 x 3/64 inch

3шт.

5

19-5563

LOCK NUT

- lock, no. 10 NC

3шт.

6

60-4133T1

SHIELD

PANEL - console wraparound

1шт.

7

19-6136

STUD

- quarterturn

11шт.

8

19-5703

RETAINER

- quarter turn stud

11шт.

9

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

10

19-6137

CONTAINER

RECEPTACLE - quarter turn stud

11шт.

11

60-5938T1

COVER

- console, gray

1шт.

12

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

5шт.

13

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

5шт.

14

60-3210T1

PLUG

- switch hole

1шт.

15

2-6138T91

ASH TRAY

ASHTRAY

1шт.

16

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

- machine, flat head, no. 8 NC x 5/8 inch

2шт.

17

19-5621

LOCK NUT,#8-32, GB

NUT - lock, no. 8 NC

2шт.

18

22-619

GROMMET

- hole plug

1шт.

19

22-727

KNOB

LIGHTER - cigar, knob and plug

1шт.

20

20-2237T1

CONTAINER

RECEPTACLE - cigar lighter

1шт.
