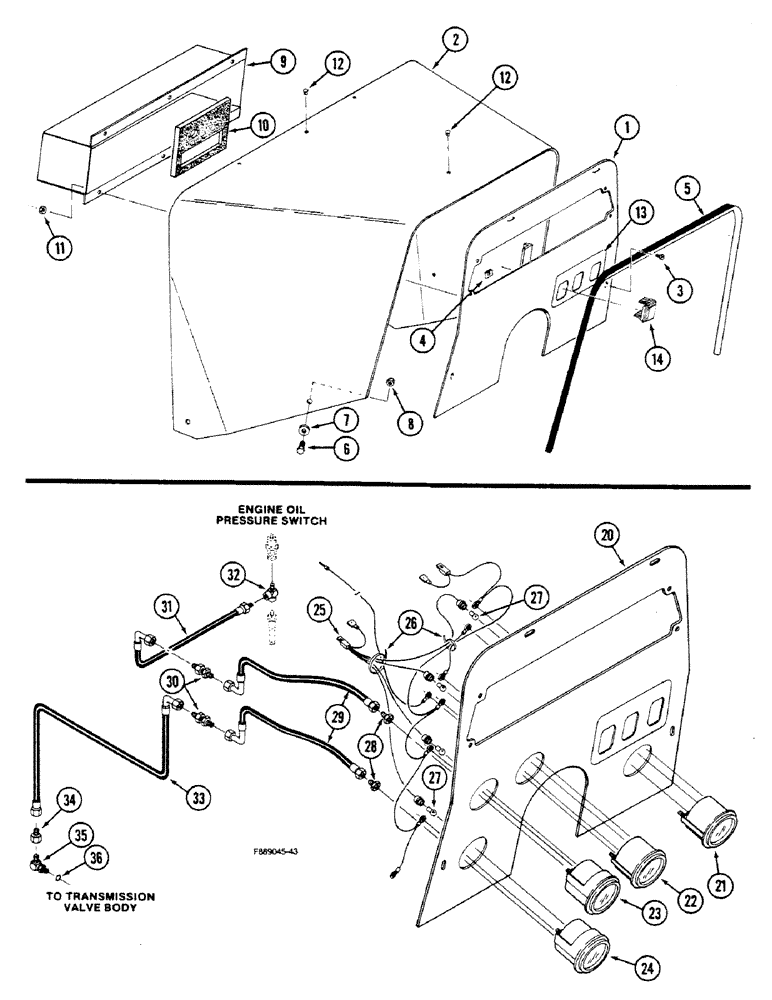

Запчасти Case IH 9150 (9-078) - INSTRUMENT PANEL, ROPS (09) - CHASSIS/ATTACHMENTS

1

60-5832T1

PANEL

PLATE - dash mounting

1шт.

2

60-5834T1

PANEL

COVER - dash wraparound

1шт.

3

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head, no. 10 NC x 3/4 inch

6шт.

4

19-6119

STEEL SHEET NUT

NUT - clip, u-type, no. 10 NC

6шт.

5

60-5859T1

GASKET

MOLDING - edge cover

1шт.

6

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

7

19-106

WASHER,5/16", SAE

- flat, 5/16 inch

4шт.

8

19-508

LOCK NUT

- lock, 5/16 inch NC

4шт.

9

60-5836T1

COVER

- rear instrument panel

1шт.

10

60-5828T1

SEAL

SEAL - foam

1шт.

11

19-1081

LOCK NUT

- lock, 1/4 inch NC

6шт.

12

60-4582T1

PLUG

- hole, nylon

2шт.

13

60-5980T1

DECAL

- switch, ROPS

1шт.

14

60-3210T1

PLUG

- switch hole

2шт.

20

60-6137T1

PANEL ASSY.

PLATE - dash mounting, guage package (if equipped) rops

1шт.

21

20-2466T1

VOLTMETER

GAUGE - voltmeter (Replaces 60-2466T1), guage package (if equipped) rops

1шт.

22

20-2465T1

GAUGE

- engine temperature (Replaces 60-2465T1), guage package (if equipped) rops

1шт.

23

20-2468T1

GAUGE

- engine oil pressure (Replaces 60-2468T1), guage package (if equipped) rops

1шт.

24

20-2467T1

GAUGE

- transmission oil pressure (Replaces 60-2467T1), guage package (if equipped) rops

1шт.

25

60-6055T1

HARNESS

- gauge adapter, package (if equipped) rops

1шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon, guage package (if equipped) rops

1шт.

27

22-717

LAMP

BULB - lamp (No. 1893), guage package (if equipped) rops

4шт.

28

31-1593

ADAPTER

- 1/8 NPT female x 7/16 - 20, 37 degree male, guage package (if equipped) rops

1шт.

29

31-2809

HOSE

- gauges to firewall, 24 inch, guage package (if equipped) rops

2шт.

30

31-1391

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - bulkhead, 7/16 - 20 male x 7/16 - 20, 37 degree, guage package (if equipped) rops

2шт.

31

31-2807

HOSE ASSY.

HOSE - firewall to pressure switch, 23 inch, guage package (if equipped) rops

1шт.

32

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

- 1/8 NPT male x 1/8 NPT female x 1/8 inch NPT female, guage package (if equipped) rops

1шт.

33

31-2808

HOSE ASSY.

HOSE - firewall to transmission, 46 inch, guage package (if equipped) rops

1шт.

34

31-2543

ADAPTER

- orificed, guage package (if equipped) rops

1шт.

35

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

- 7/16 - 20 o-ring boss x 7/16 - 20, 37 degree male, guage package (if equipped) rops, Includes: Ref. 36

1шт.

36

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

- 23/64 ID x 5/32 inch width, guage package (if equipped) rops

1шт.
