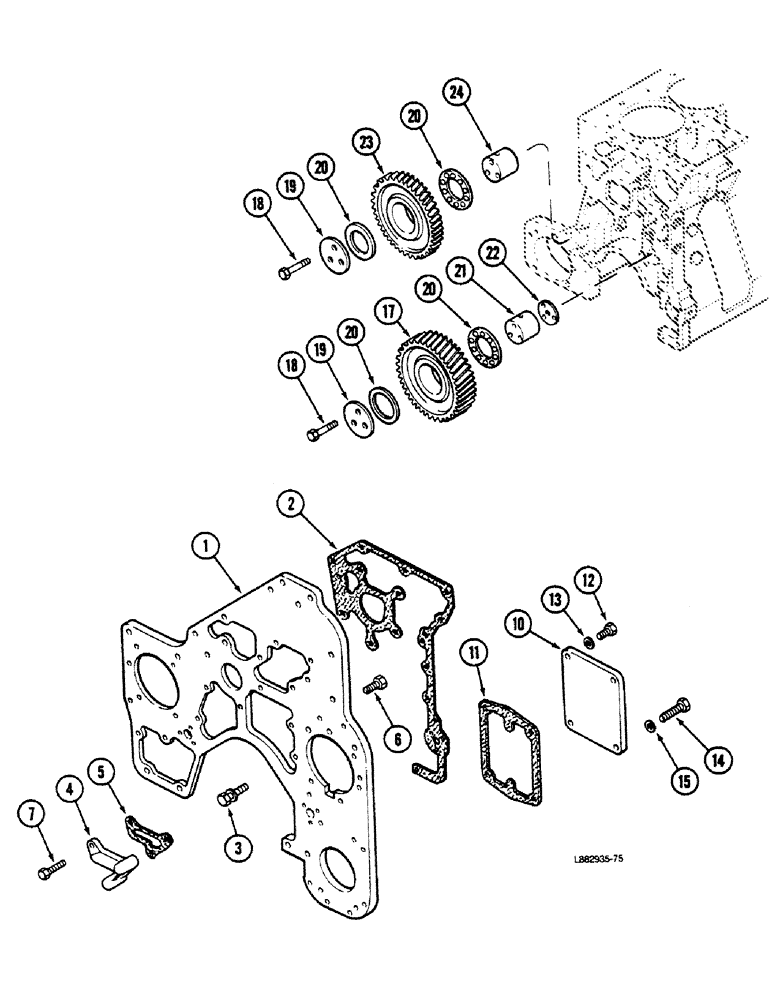

Запчасти Case IH 9150 (2-14) - FRONT GEAR PLATE, L-10 ENGINE (02) - ENGINE

1

3035942

PLATE

- gear cover

1шт.

2

3600925

GASKET

- gear cover plate

1шт.

3

3818060

CAP,Hex, M10 x 1.5 x 25mm

BOLT - hex, M10 x 1.50 x 25 mm

14шт.

4

3031770

CONNECTION

- oil

1шт.

5

3031771

GASKET

- oil connection

1шт.

6

3025802

CAP

BOLT - hex, M8 x 1.25 x 20 mm

2шт.

7

3034836

CAP

BOLT - hex, M10 x 1.50 x 30 mm

1шт.

10

3027640

COVER

- hydraulic pump flange

1шт.

11

3818847

GASKET

- pump flange cover

1шт.

12

3036230

CAP

BOLT - hex

1шт.

13

3821272

WASHER

- flat, 10 mm

1шт.

14

3027705

CAP

BOLT - hex

3шт.

15

3821279

WASHER

- flat

3шт.

17

3038986

GEAR, IDLER

GEAR ASSEMBLY - idler, camshaft, Includes gear and bushing

1шт.

NSS

NOT SOLD SEPARAT

GEAR - idler, camshaft

1шт.

3026188

BUSHING

- idler gear

1шт.

18

3039398

CAP

BOLT - hex, M10 x 1.50 x 60 mm

6шт.

19

3026233

RETAINER

- idler gear

2шт.

20

3027769

BEARING, THRUST

BEARING - thrust, idler gears

4шт.

21

3026166

SHAFT

- idler gear, camshaft

1шт.

22

3041038

PLATE

- wear, idler gear

1шт.

23

3038988

GEAR, IDLER

GEAR ASSEMBLY - idler, water pump, Includes gear and bushing

1шт.

NSS

NOT SOLD SEPARAT

GEAR - idler, water pump

1шт.

3026189

BUSHING

- idler gear

1шт.

24

3026167

SHAFT

- idler gear, water pump

1шт.
