(9-060) - SEAT, AIR SUSPENSION, CAB, (CONT)

Запчасти Case IH 9150 (9-060) - SEAT, AIR SUSPENSION, CAB, (CONT) (09) - CHASSIS/ATTACHMENTS

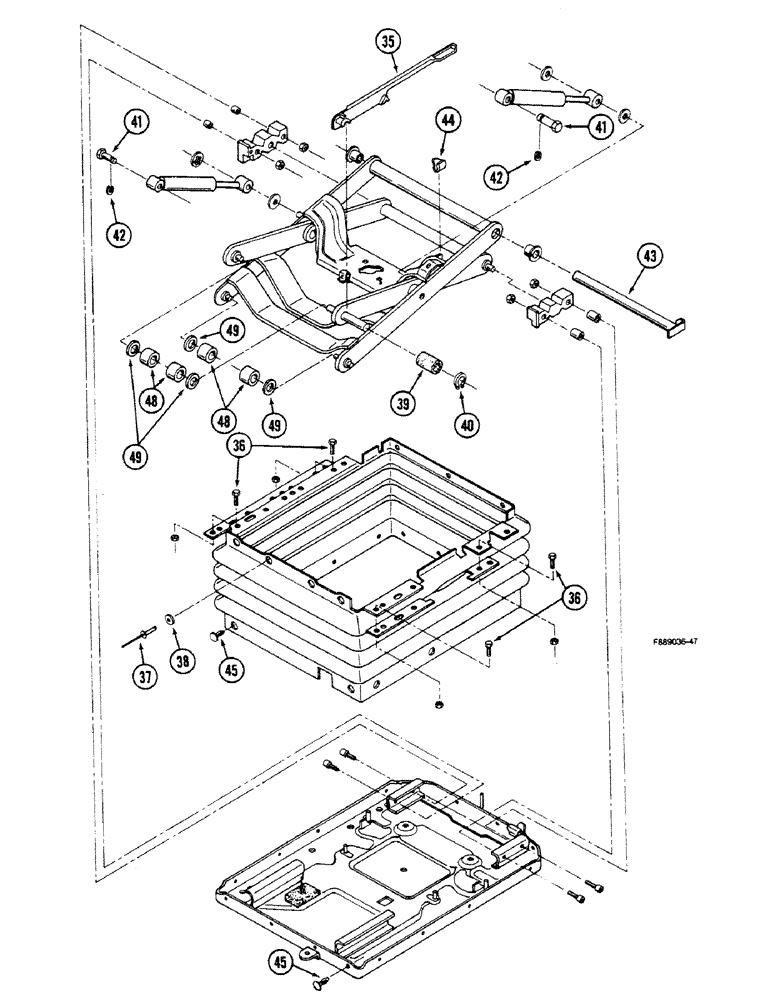

Схема запчастей Case IH 9150 - (9-060) - SEAT, AIR SUSPENSION, CAB, (CONT) (09) - CHASSIS/ATTACHMENTS
42
45
49
42
38
36
36
49
48
44
43
41
49
40
39
37
45
48
35
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60-4901T91

CAM

ASSEMBLY - sliding (Continued from Figure 9-58), Includes: Ref. 35 - 45

1шт.

35

NSS

NOT SOLD SEPARAT

CAM - sliding

1шт.

36

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

BOLT - hex, M8 x 16 mm

4шт.

37

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

1шт.

38

19-699

WASHER,3/16"

- flat, 1/4 inch

1шт.

39

60-4905T1

BUMPER

- suspension

1шт.

40

60-4906T1

RING, SNAP

RING - snap, M12

1шт.

41

60-3233T1

PIN

- shock absorber

2шт.

42

40-1182

CIRCLIP,M6

RING - snap, M5

2шт.

43

60-5625T1

STEM

PIN - swing arm pivot (Replaces 60-4885T1)

1шт.

44

60-4881T1

CLIP,ELECTRICAL

CUP - cable retaining

1шт.

45

60-1613T1

FASTENER

- snap, boot

25шт.

48

60-4879T1

NEEDLE BEARING

- needle roller

4шт.

49

60-4878T1

FELT SEAL

- dust, felt

4шт.
