(9-054) - SEAT, MOUNTING AIR SUSPENSION, CAB

Запчасти Case IH 9150 (9-054) - SEAT, MOUNTING AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

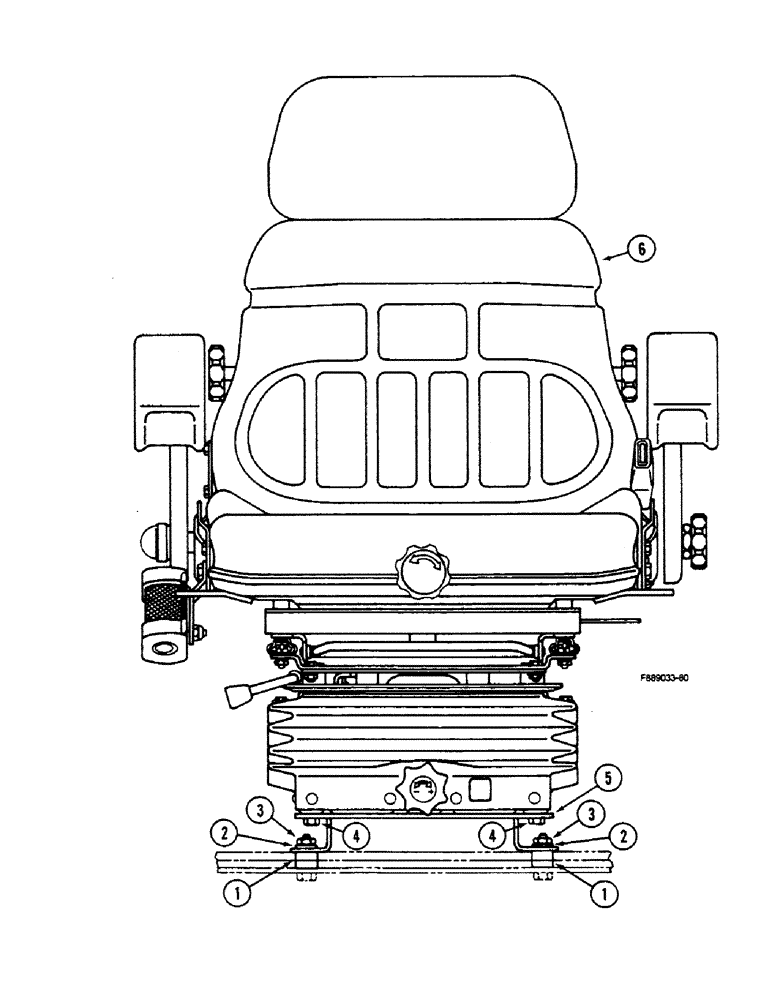

Схема запчастей Case IH 9150 - (9-054) - SEAT, MOUNTING AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
3
2
5
3
4
1
1
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-2286T1

SPACER

- seat mount to floor plate

4шт.

2

19-82

LOCK NUT

- lock, 1/2 inch NC

4шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

BOLT - hex, M8 x 1.25 x 20 mm

4шт.

4

60-4789T2

ANCHOR

MOUNT - seal

1шт.

5

19-463

WASHER,1/2", SAE

- flat, 1/2 inch

4шт.

6

60-5949T91

SEAT

ASSEMBLY - air suspension, Gray cloth upholstery

1шт.

6

60-4793T91

SEAT ASSY.

SEAT ASSEMBLY - air suspension, Tan cloth upholstery

1шт.
