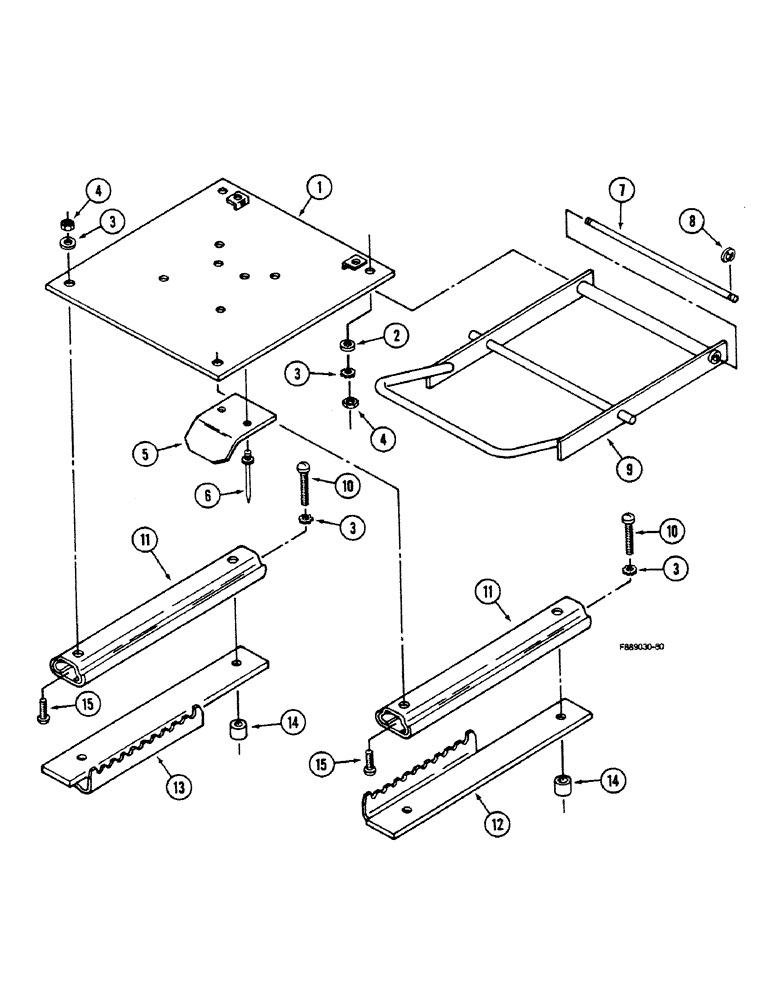

Запчасти Case IH 9150 (9-048) - SEAT, MECHANICAL SUSPENSION, ROPS (09) - CHASSIS/ATTACHMENTS

60-5802T91

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension, vinyl upholstery (Continued from Figure 9-46)

1шт.

1

60-3250T1

PLATE ASSY.

PLATE - seat pan mounting

1шт.

2

40-1007

WASHER

- flat, M8

4шт.

3

40-1154

LOCK WASHER

- lock, M8

12шт.

4

40-1121

NUT

- M8

8шт.

5

60-3368T1

SPRING

PLATE - spring

1шт.

6

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

2шт.

7

60-3248T1

ROD

- handle pivot

1шт.

8

40-1182

CIRCLIP,M6

RING - snap, M5

2шт.

9

60-3249T1

HANDLED SHAFT

HANDLE - fore and aft adjustment

1шт.

10

40-1181

BOLT,Sl, M8 x 1.25 x 30mm

- machine, pan head, M8 x 30 mm

4шт.

11

60-1577T1

RAIL ASSY.

RAIL - fore and aft seat slide

2шт.

12

60-3253T1

PLATE

- left locking, slide rail

1шт.

13

60-3251T1

PLATE

- right locking, slide rail

1шт.

14

60-3252T1

BUSHING

- slide rail mounting

4шт.

15

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

- machine, pan head, M8 x 16 mm

4шт.
