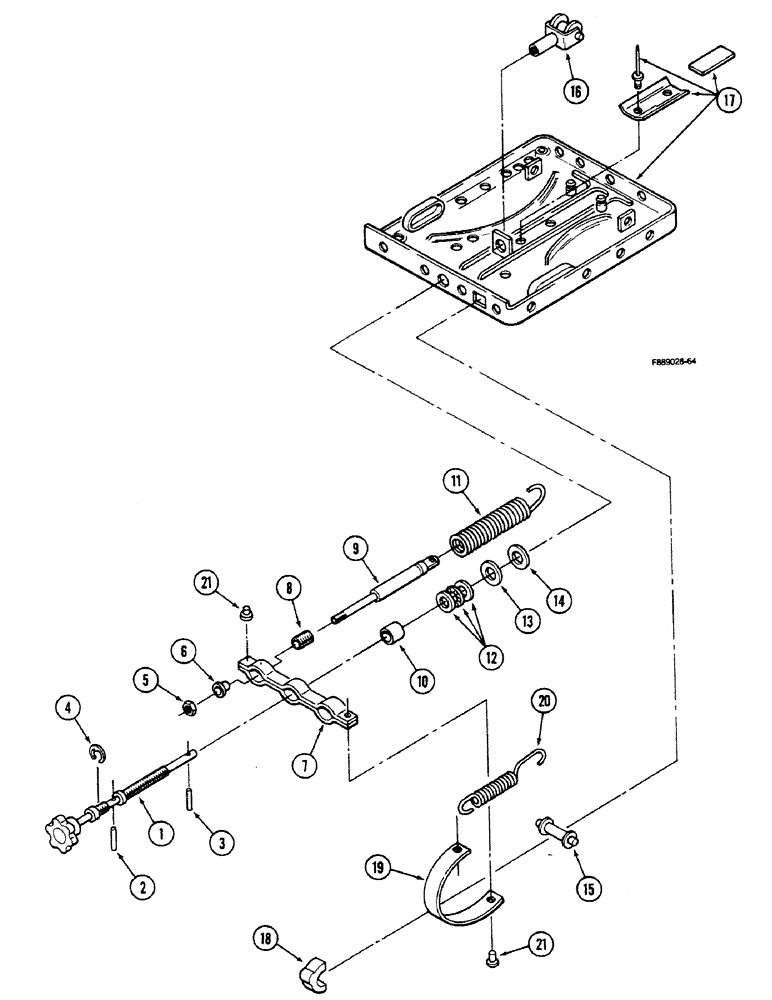

Запчасти Case IH 9150 (9-044) - SEAT, MECHANICAL SUSPENSION, ROPS (09) - CHASSIS/ATTACHMENTS

60-5802T91

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension, vinyl upholstery

1шт.

1

60-3202T91

SPINDLE

ASSEMBLY - weight adjustment, Includes: Ref. 2 - 4

1шт.

2

40-1180

PIN

- spring, 4 x 20 mm

1шт.

3

40-1179

PIN

- spring, 3 x 16 mm

1шт.

4

40-1178

RING

- snap, 15 mm

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

- hex jam, M8

2шт.

6

60-1629T1

NUT

- weld, M8

2шт.

7

60-1583T1

SPRING

YOKE - spring (Replaces 60-1583)

1шт.

8

60-1630T1

SLEEVE

- threaded

2шт.

9

60-1581T1

SHOCK ABSORBER

- seat

2шт.

10

60-1631T1

TUBE

TUBING - spacer

1шт.

11

60-1595T1

SPRING

- shock absorber

2шт.

12

60-1586T1

BEARING ASSY

- thrust

1шт.

13

60-1587T1

WASHER

- flat, M8

1шт.

14

60-1579T1

RUBBER WASHER

- flat, rubber

1шт.

15

60-1580T1

ROLLER

- weight indicator band

1шт.

16

60-3184T1

BEARING ASSY

SLIDE - bearing and bracket

1шт.

17

60-1614T1

PLATE

- lower suspension

1шт.

18

60-1584T1

LENS

- magnifier, weight indicator band

1шт.

19

60-1594T1

BAND

- weight indicator

1шт.

20

60-1596T1

SPRING

- weight indicator band

1шт.

21

60-1585T1

FASTENER

- snap, weight indicator band

1шт.
