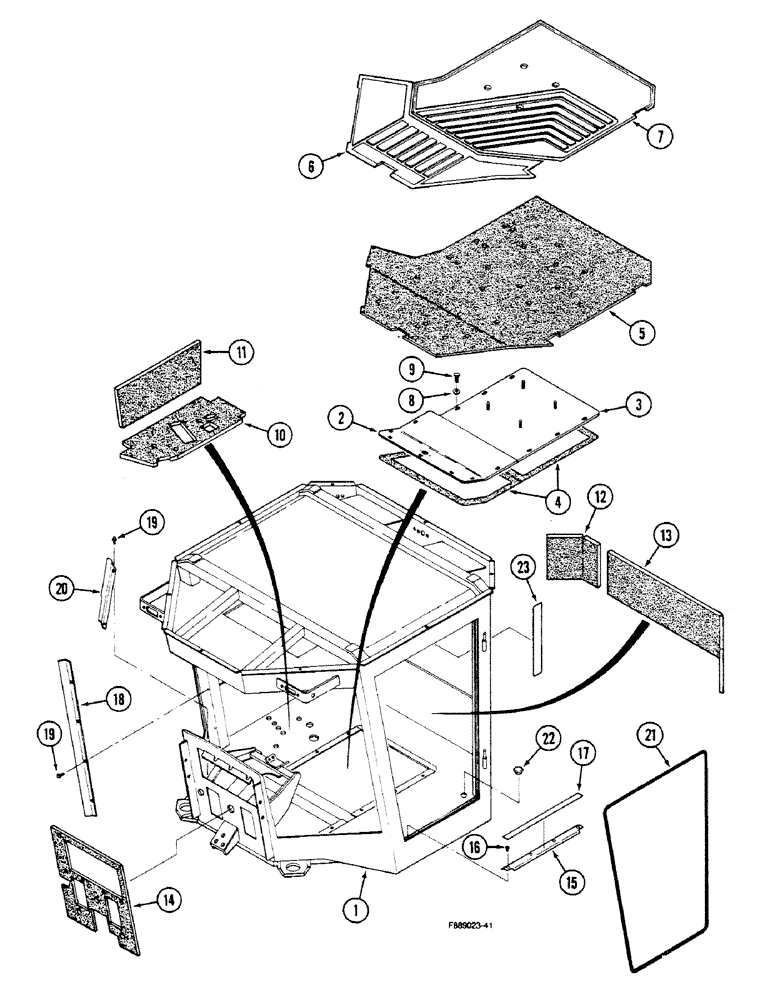

Запчасти Case IH 9150 (9-036) - CAB FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME ASSEMBLY - cab (See Figure 9-28)

1шт.

2

60-5612T1

PLATE

- floor access, front

1шт.

3

60-5598T1

COVER

PLATE - floor access, rear

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - floor access plates (Order 60-4596T2 and, Serial Range: cut-length)

1шт.

5

60-4577T4

FOAM

BARRIER - noise, floor

1шт.

6

60-4576T1

MAT

FLOORMAT - front

1шт.

7

60-4575T3

FLOOR MAT

FLOORMAT - rear

1шт.

8

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

13шт.

9

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

13шт.

10

60-5601T1

FOAM

PAD - console insulation, floor

1шт.

11

60-4503T1

FOAM

PAD - console insulation, side

1шт.

12

60-4504T1

FOAM

PAD - console insulation, back

1шт.

13

60-5935T1

NOISE PROTECTION

COVER - cab rear

1шт.

14

60-4481T1

FOAM

BARRIER - cab firewall

1шт.

15

60-5011T2

LARGE PLATE

THRESHOLD - cab entrance

1шт.

16

19-641

SCREW,Sl Csk, #10 - 24 x 1/2"

- machine, flat head, no. 10 NC x 1/2 inch

4шт.

17

60-4599T1

BAND

STRIP - non skid

2шт.

18

60-4383T1

PROTECTOR

GUARD - wire, cab post

1шт.

19

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, no. 10 NC x 1/2 inch

6шт.

20

60-4403T1

PROTECTOR

GUARD - wire, floor

1шт.

21

60-4125T2

SEAL

- cab door

1шт.

22

31-2727

PLUG

- floor

2шт.

23

2-7393T1

DECAL

- safety, cab post

1шт.
