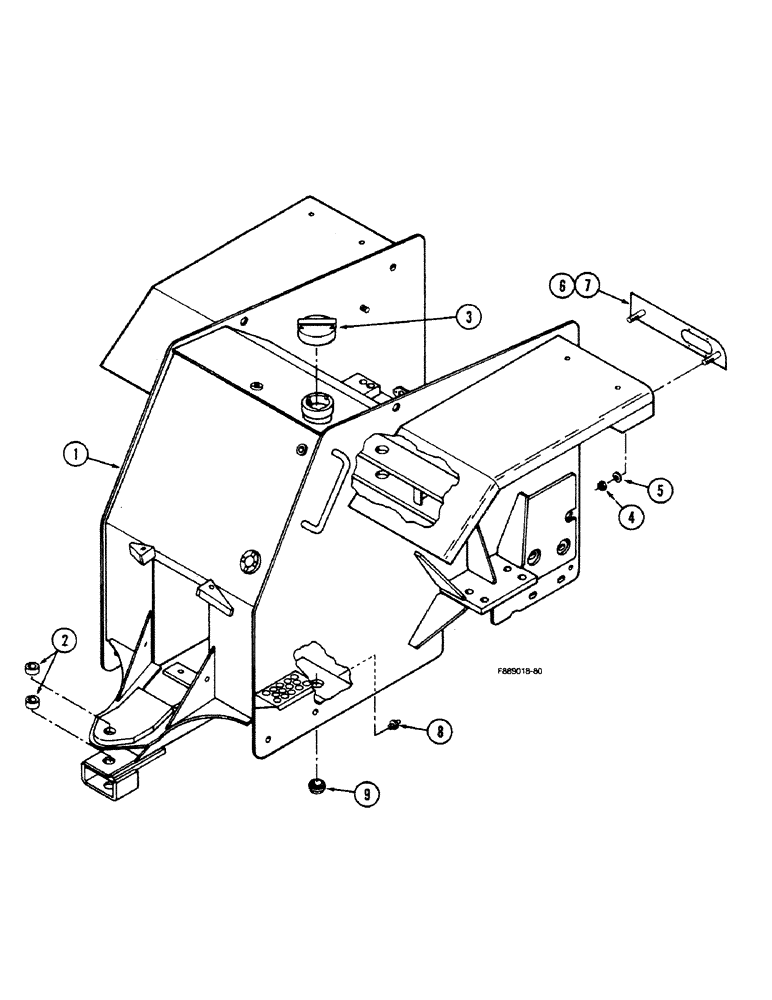

Запчасти Case IH 9150 (9-026) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

70-4188T2

FUNNEL

FRAME - rear

1шт.

2

70-4620T1

BUSHING

- frame hinge

2шт.

3

2-3679T1

FILLER CAP

CAP - fuel fill

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

19-107

WASHER

- flat, 3/8 inch

4шт.

6

70-4113T1

MOUNTING PARTS

MOUNT - tail lamp, right

1шт.

7

70-4114T1

MOUNTING PARTS

MOUNT - tail lamp, left

1шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

15-44

SPHERICAL BEARING

BEARING - self aligning

2шт.
