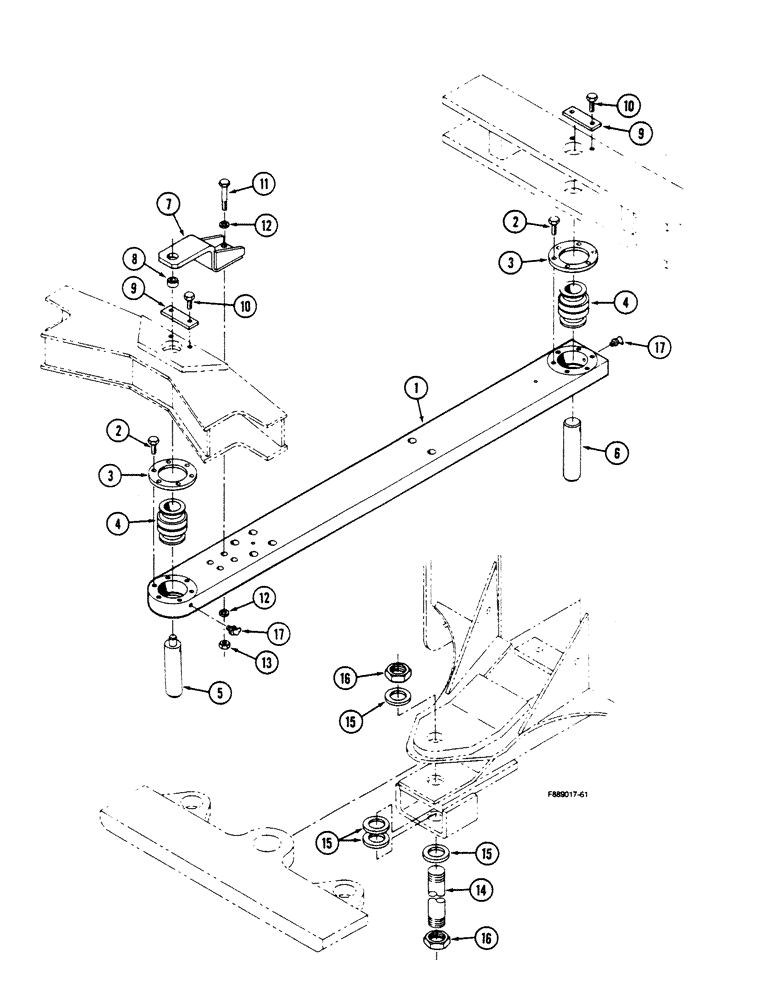

Запчасти Case IH 9150 (9-024) - FRAME CONNECTING LINK AND KING PINS (09) - CHASSIS/ATTACHMENTS

70-4083T91

POWER ARM

LINK - frame connecting, assembly, Includes: Ref. 1 - 4

1шт.

1

70-4073T1

LINK

- frame connecting

1шт.

2

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

12шт.

3

2-10

RETAINER

RING - bearing retaining

2шт.

4

15-45

SPHERICAL BEARING,1.755" ID x 3.5617" OD x 4"

- uniball

2шт.

5

70-4074T1

PIN,44.37mm OD x 204.22mm L

- connecting link, front

1шт.

6

70-4077T1

PIN

- connecting link, rear

1шт.

7

70-4075T91

STABILIZER

- link pin, Includes: Ref. 8

1шт.

8

70-4111T1

BEARING

BUSHING - pin stabilizer

1шт.

9

70-1910T1

RETAINER

- connecting link pin

2шт.

10

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

- hex, 1/2 NC x 1-1/4 inch, grade 8

4шт.

11

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, grade 8

4шт.

12

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened, 1/2 x 1-1/16 x 3/32 inch

8шт.

13

19-82

LOCK NUT

- lock, 1/2 inch NC

4шт.

14

70-4189T1

PIN,44.37mm OD x 339.85mm L

- King, lower frame connecting

1шт.

15

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, hardened, 1-3/4 x 2-3/4 x 1/4 inch

4шт.

16

19-620T1

NUT

- jam, 1-3/4 inch NF

2шт.

17

31-93

FITTING

- grease, 1/8 inch NPT

2шт.
