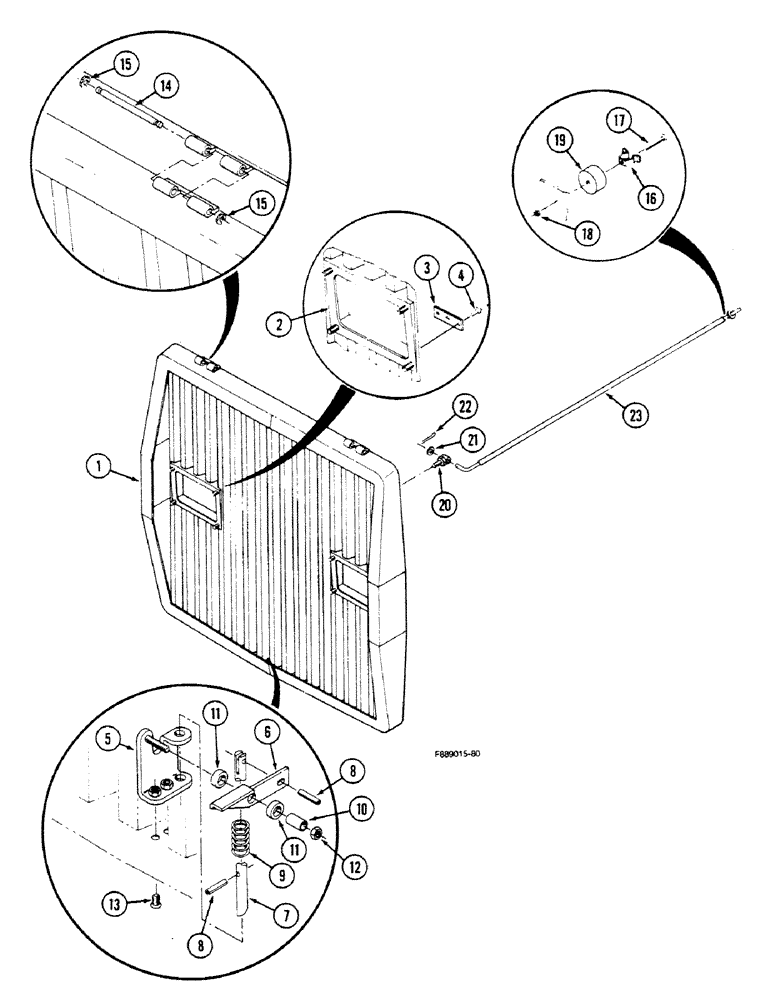

Запчасти Case IH 9150 (9-020) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

70-4946T1

GRILLE

- front screen, Includes: Ref. 2 - 4

1шт.

2

70-4484T1

SUPPORT

BRACKET - head lamp retaining

2шт.

3

70-2507T2

LARGE PLATE

PLATE - clamp mounting

3шт.

4

1-2503

RIVET,Pop, .146" x .425"

- pop

1шт.

70-4190T91

LATCH

ASSEMBLY - grille opening, Includes: Ref. 5 - 12

1шт.

5

70-4196T1

BRACKET

- latch mount

1шт.

6

70-4192T1

LEVER

- latch actuating

1шт.

7

70-4194T1

ROD

- grille latch

1шт.

8

455734

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

2шт.

9

19-6155

SPRING

- latch retension

1шт.

10

70-4193T1

SPACER

- lever pivot

1шт.

11

70-4195T1

SPACER

- lever centering

2шт.

12

231-24109

LOCK NUT,#10-32, GB

NUT - lock, no. 10 NF

1шт.

13

19-565

SCREW,Sl Flat Hd, #10 - 24 x 5/8", Gr 5

- machine, flat head, no. 10 NC x 5/8 inch

2шт.

14

70-1996T2

PIN

- hinge, grille

2шт.

15

70-2600T1

RING, SNAP

RING - retaining, hinge pin

4шт.

16

19-5988

CLIP

- rod retaining

1шт.

17

51200257

SCREW

- machine, round, no. 2 NC x 3/4 inch

1шт.

18

19-5789

NUT

- no. 2 NC

1шт.

19

70-2679T1

SPACER

- rod clip

1шт.

20

70-1797T1

ROD

PIVOT - grille rod

1шт.

21

19-107

WASHER

- flat, 3/8 inch

1шт.

22

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

23

70-4259T1

GRILLE

ROD - open grille retaining

1шт.
