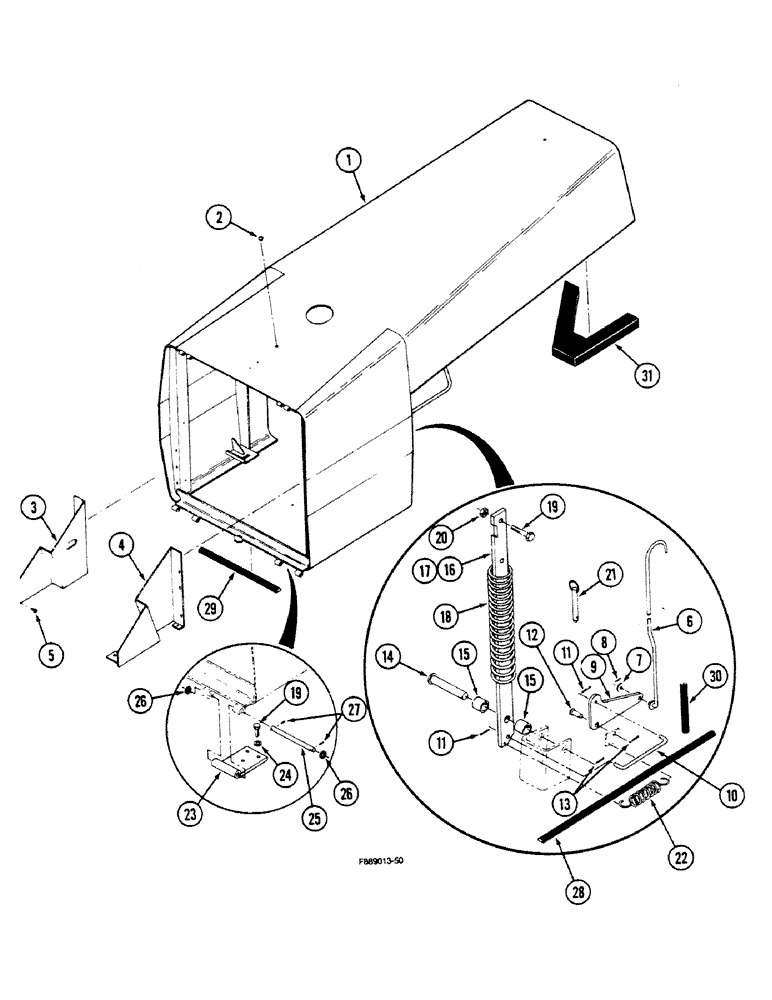

Запчасти Case IH 9150 (9-018) - HOOD (09) - CHASSIS/ATTACHMENTS

1

70-4180T2

HOOD

- engine cover

1шт.

2

60-4401T1

PLUG

- hole

2шт.

3

60-4709T2

PLATE

SHIELD - front right

1шт.

4

60-4708T1

PLATE

SHIELD - front left

1шт.

5

19-1061

SELF-TAP SCREW,Flg, 1/4" x 3/8"

SCREW - tapping, flanged head, 1/4 NC x 3/8 inch

2шт.

6

70-4363T1

ROD

- trip release

1шт.

7

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

8

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

9

70-4356T1

LEVER

PIVOT - linkage actuating

1шт.

10

70-4357T1

ROD

- release actuating

1шт.

11

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

12

19-5423

CLEVIS PIN

3/8 x 7/8"

1шт.

13

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

4шт.

14

19-934

PIN

- clevis, 5/8 x 3-3/4 inch

2шт.

15

70-4348T1

SPACER

- lever

4шт.

16

70-4439T1

LEVER

- open hood retaining, left (Shown)

1шт.

17

70-4438T1

LEVER

- open hood retaining, right (Not shown)

1шт.

18

19-6179

SPRING

- hood opening assist

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

20

19-341

LOCK NUT,3/8" - 16, GB

NUT - lock, 3/8 inch NC

2шт.

21

19-5774

PIN

- open hood retaining, 3/8 x 2-1/2 inch

1шт.

22

19-5820

SPRING

- lever locking

1шт.

23

70-4263T1

HINGE

- hood

2шт.

24

19-1059

WASHER

- flat, hardened, 3/8 inch

6шт.

25

70-4262T1

PIN

- hinge

2шт.

26

19-5779

BUSHING

WASHER - flat, 1/2 x 7/8 x 5/64 inch

4шт.

27

455734

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

4шт.

28

NSS

NOT SOLD SEPARAT

SEAL - lower hood side (Order 70-5259T1 and cut to 20.50 inch)

2шт.

29

NSS

NOT SOLD SEPARAT

SEAL - grille to hood (Order 70-5259T1 and cut to 35.75 inch)

5шт.

30

NSS

NOT SOLD SEPARAT

SEAL - hood to radiator (Order 90-6833T1 and cut to 108 inch)

1шт.

31

70-4519T1

FOAM

- rear hood seal

1шт.
