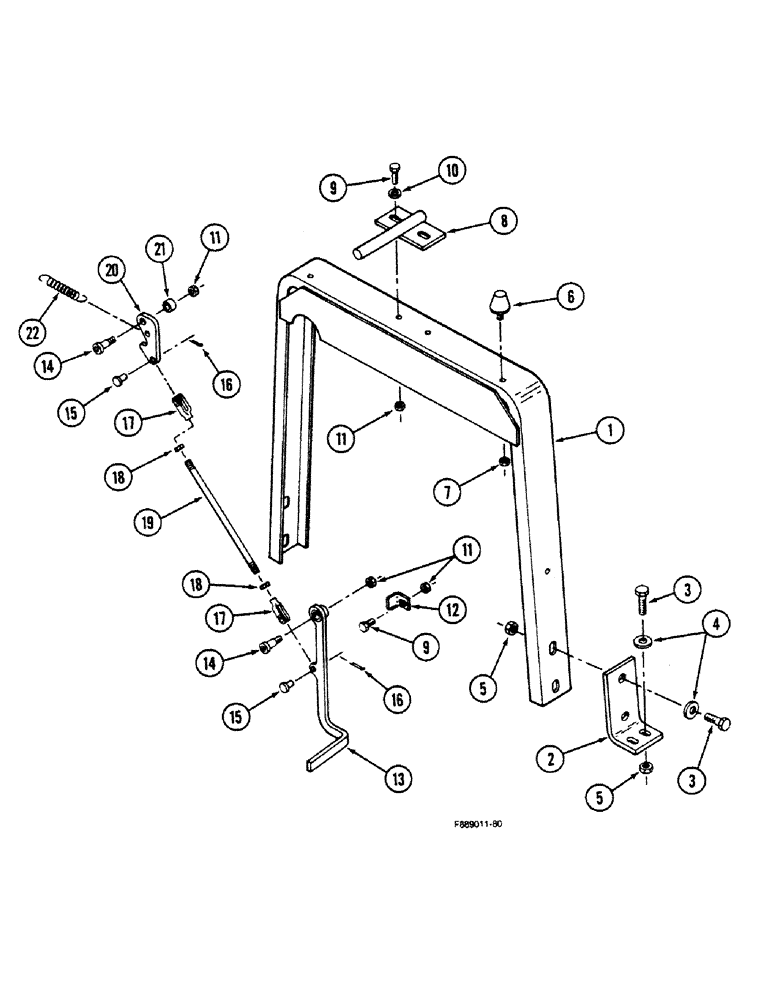

Запчасти Case IH 9150 (9-016) - HOOD SUPPORT (09) - CHASSIS/ATTACHMENTS

1

70-4217T1

SUPPORT

- hood, rear

1шт.

2

70-4377T1

MOUNTING PARTS

MOUNT - frame attaching

2шт.

3

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

8шт.

4

19-109

WASHER,1/2"

- flat, 1/2 inch

8шт.

5

19-653

LOCK NUT

- lock, 1/2 inch NC

8шт.

6

70-2816T1

BUMPER

- hood adjustment, rubber

2шт.

7

19-236

JAM NUT,5/16" - 24, Gr 5

- jam, 5/16 inch NF

4шт.

8

70-2807T1

PLATE

ROD - hood centering and retaining

1шт.

9

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

3шт.

10

19-107

WASHER

- flat, 3/8 inch

3шт.

11

19-341

LOCK NUT,3/8" - 16, GB

NUT - lock, 3/8 inch NC

5шт.

12

70-4214T1

BRACKET - hood release stop

1шт.

13

70-4211T1

LEVER

- hood release

1шт.

14

19-6086

SCREW,Shldr, Hex Skt, 3/8" - 16 x 3/4"

BOLT - shouldered

2шт.

15

19-144

CLEVIS PIN,1/4" x 0.77"

PIN - clevis, 1/4 x 3/4 inch

2шт.

16

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

17

19-141

CLEVIS

YOKE - adjustable clevis

2шт.

18

19-936

JAM NUT

- jam, 1/4 inch NF

2шт.

19

70-4213T1

ROD

- hood release

1шт.

20

70-2805T1

LATCH

- hood release

1шт.

21

70-2806T1

SPACER

- release latch

1шт.

22

11-8

SPRING

- latch return

1шт.
