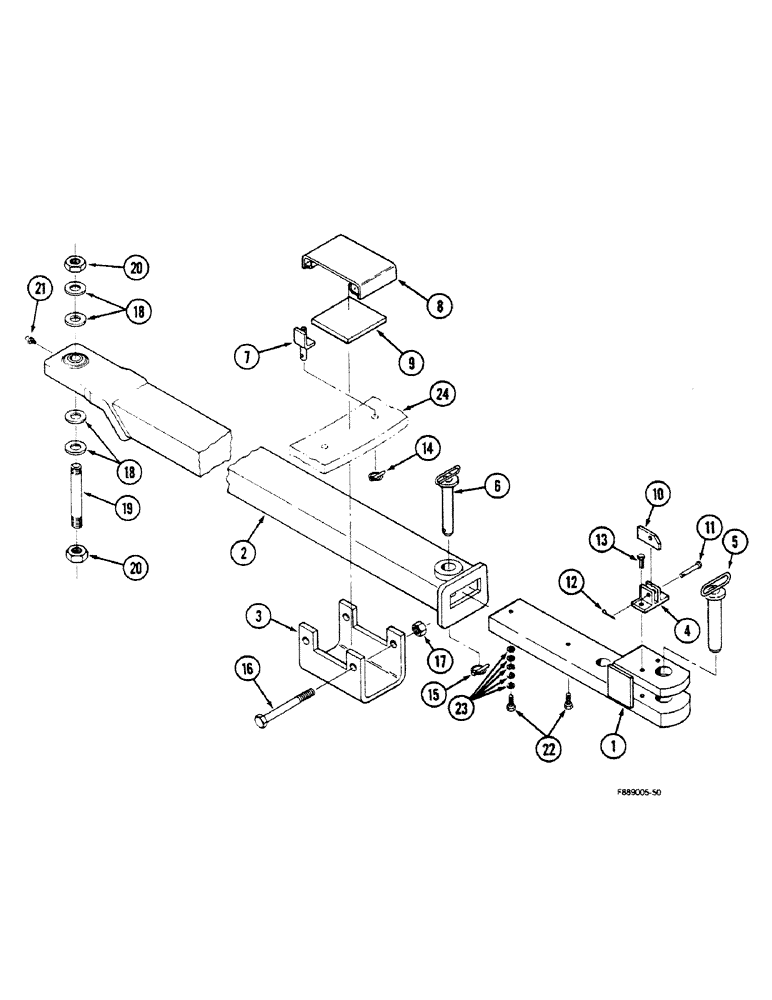

Запчасти Case IH 9150 (9-010) - DRAWBAR, EXTENDABLE (09) - CHASSIS/ATTACHMENTS

1

70-5202T1

DRAWBAR

- extendable

1шт.

2

70-5226T1

ARM

TUBE - drawbar receiver

1шт.

3

70-4516T1

CLEVIS

YOKE - drawbar cradle

1шт.

4

70-1737T1

LATCH

- pin retaining

1шт.

5

70-1735T1

PIN

- drawbar pull

1шт.

6

70-1731T1

PIN

- drawbar retaining

1шт.

7

70-1937T2

SHAFT LOCK

PIN - slide stop

2шт.

8

70-4555T1

COVER

- slider retaining

1шт.

9

70-4513T1

SLIDE

R - drawbar, plastic

1шт.

10

1-4906

LATCH

LEVER - pin retaining

1шт.

11

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch

1шт.

12

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

13

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

14

19-6056

LOCK PIN,7/16" x 1 3/4"

PIN - klik

2шт.

15

19-1041

LOCK PIN,7/16" x 2"

PIN - klik

1шт.

16

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

- hex, 1 NC x 9-1/4 inch, grade 8

2шт.

17

19-375

LOCK NUT,1" - 8, GB

NUT - lock, 1 inch NC

2шт.

18

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, hardened, 1-3/4 x 2-3/4 x 1/4 inch (Replaces 1-4080)

4шт.

19

70-4189T1

PIN,44.37mm OD x 339.85mm L

- drawbar and center link

1шт.

20

19-620T1

NUT

- jam, 1-3/4 inch NC

2шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

22

19-1106

BOLT,Hex, 5/8" - 11 x 1.25, Gr 8, Full Thd

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

23

19-111

WASHER,5/8"

- flat, 5/8 inch

5шт.

24

REF

INSTRUCTION

HANGER - drawbar, without three point hitch (See Figure 9-12)

1шт.
