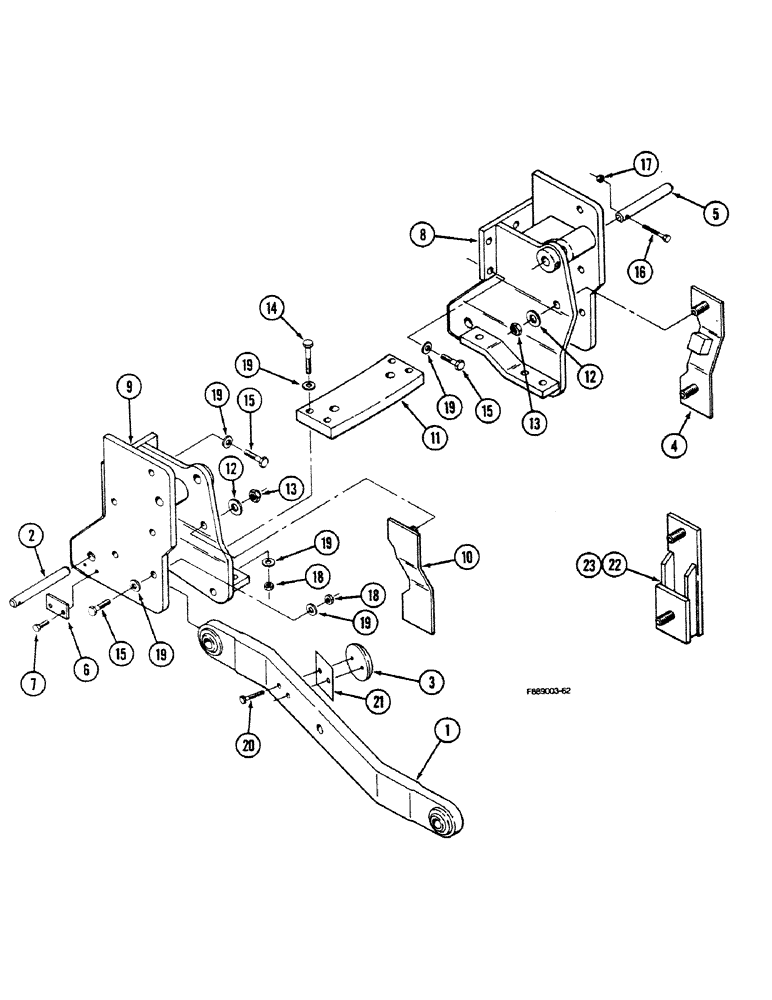

Запчасти Case IH 9150 (9-006) - HITCH LOWER LINK AND MOUNTS (09) - CHASSIS/ATTACHMENTS

1

70-4612T1

ARM

- lower link draft

2шт.

2

70-4222T1

PIN

- draft arm

2шт.

3

2-2516T2

LARGE PLATE

PLATE - wear

2шт.

4

70-4487T1

PLATE

- wear, RH

1шт.

5

70-4225T1

PIN

- lift cylinder, bottom

2шт.

6

70-3082T2

LARGE PLATE

BLOCK - pin retaining

2шт.

7

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

4шт.

8

70-4294T2

SHOCK ABSORBER

MOUNT - lower link, RH

1шт.

9

70-4291T2

MOUNTING PARTS

MOUNT - lower link, LH

1шт.

10

70-4252T2

PLATE

- wear, LH

1шт.

11

70-4246T1

BAR

- drawbar hanger, with three point hitch

1шт.

12

19-5739

WASHER

- flat, hardened, 1 x 2 x 5/32 inch

4шт.

13

131-1221

LOCK NUT,1"-8, GC

NUT - hex lock, 1 inch NC

4шт.

14

19-1118

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8

4шт.

15

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

18шт.

16

19-1119

BOLT,3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, grade 8

2шт.

17

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 inch NC

2шт.

18

19-84

NUT,3/4"-10, G5

- 3/4 inch NC

14шт.

19

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

32шт.

20

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, grade 8

4шт.

21

70-4633T1

SHIM

- wear plate

1шт.

22

70-4410T2

BLOCK

- non-sway, RH (Shown)

1шт.

23

70-4607T1

BLOCK

- non-sway, LH (Not shown)

1шт.
