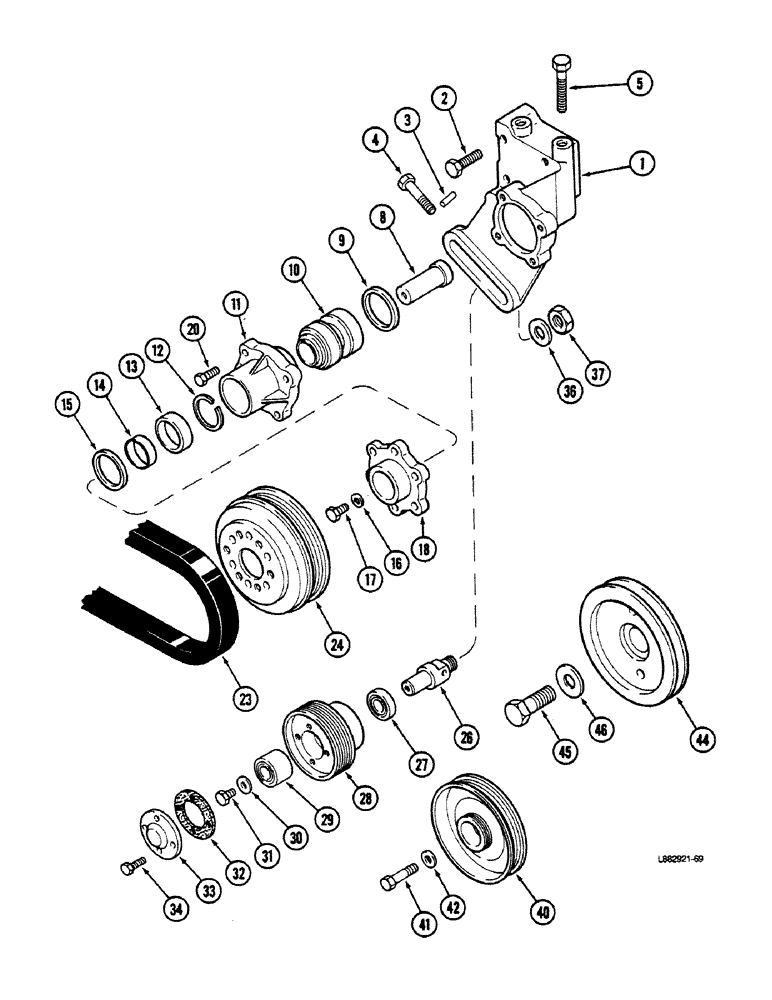

Запчасти Case IH 9150 (2-08) - FAN DRIVE, L-10 ENGINE (02) - ENGINE

1

3820201

SUPPORT

- fan hub

1шт.

2

3027670

CAP

BOLT - hex, M12 x 1.75 x 80 mm

3шт.

3

107695

PIN - roll

1шт.

4

3040245

CAP

BOLT - hex, M10 x 1.50 x 170 mm

1шт.

5

S-117

SPARE PART

BOLT - hex, 3/8 - 16 x 3/4 inch

2шт.

3034968

HUB ASSY.

HUB ASSEMBLY - fan, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - fan hub (Order 3034968)

1шт.

9

200307

OIL

SEAL - oil

1шт.

10

3001281

BEARING, ROLLER

BEARING - roller

2шт.

11

NSS

NOT SOLD SEPARAT

HUB - fan (Order 3034968)

1шт.

12

3001280

RING, SNAP

RING - retaining

1шт.

13

217011

SPACER

- bearing

1шт.

14

217008

SPACER

- bearing

1шт.

15

3027675

OIL

SEAL - oil

1шт.

16

NLS

NO LONGER SERVICED

WASHER - flat, 10 mm

1шт.

17

3335044

CAP

BOLT - hex, M10 x 1.50 x 25 mm

1шт.

18

NSS

NOT SOLD SEPARAT

FLANGE - fan hub (Order 3034968)

1шт.

20

3034836

CAP

BOLT - hex, M10 x 1.50 x 30 mm

4шт.

23

3034942

BELT

- ribbed, V

1шт.

24

3046206

FAN

PULLEY - fan

1шт.

3034969

PULLEY

ASSEMBLY - idler, Includes: Ref. 26 - 34

1шт.

26

3034317

SHAFT

- idler

1шт.

27

NLS

NO LONGER SERVICED

SEAL - oil

1шт.

28

3034316

PULLEY

- idler

1шт.

29

3027681

BEARING, ROLLER

BEARING - roller

1шт.

30

3003163

WASHER

- flat

1шт.

31

3335044

CAP

BOLT - hex, M10 x 1.50 x 25 mm

1шт.

32

NLS

NO LONGER SERVICED

GASKET - cover plate

1шт.

33

3034318

PLATE

- cover

1шт.

34

A71009

SCREW

BOLT - hex, M6 x 1.00 x 12 mm (Order from J.I. Case)

4шт.

Order Ref. 34 from J.I. Case.

1шт.

36

3034320

WASHER

- flat, 20 mm

1шт.

37

3034319

NUT

- hex, 20 mm

1шт.

40

3046408

PULLEY

- accessory drive, 5 rib belt

1шт.

41

3018671

CAP

BOLT - hex, M12 x 1.75 x 40 mm

1шт.

42

3041247

WASHER

- flat, 12 mm

1шт.

44

3041044

PULLEY

- accessory drive, V belt

1шт.

45

3818229

CAP,Hex, M20 x 2.5 x 50mm

BOLT - hex, M20 x 2.50 x 50 mm

1шт.

46

3818463

WASHER

- flat, 20 mm

1шт.
