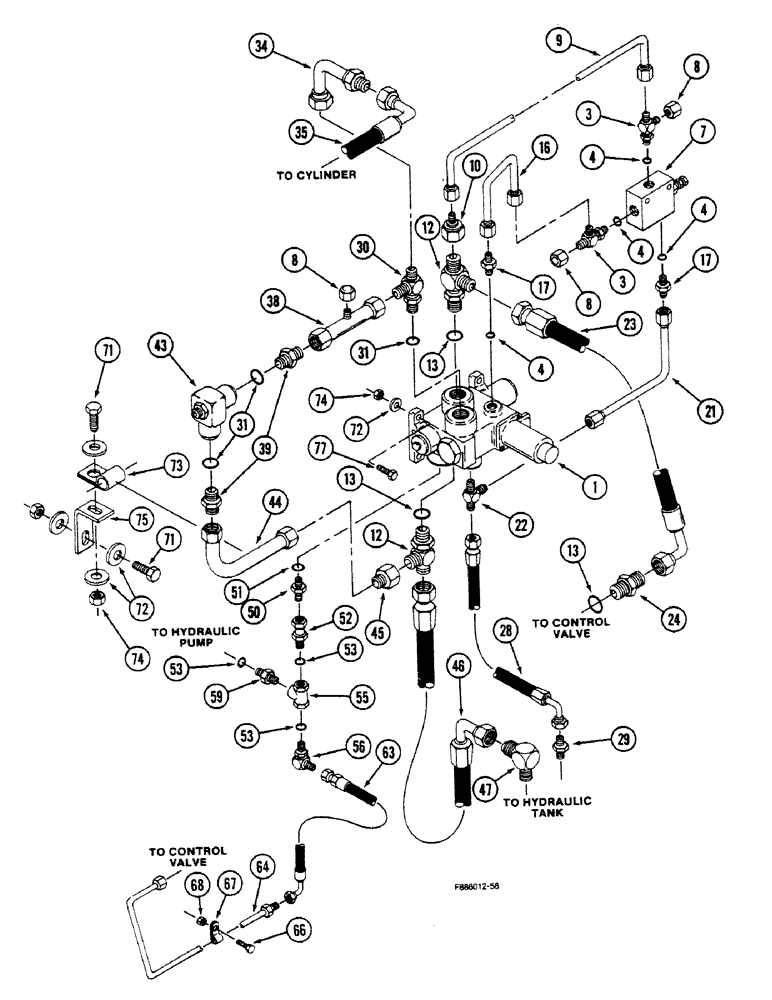

Запчасти Case IH 9150 (8-24) - THREE POINT HITCH HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid (See Figure 8-32)

1шт.

3

31-1319

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

- adjustable, 9/16 x 9/16 x 9/16 inch thread, Includes: Ref. 4

2шт.

4

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - pressure reducing (See Figure 8-34)

1шт.

8

9403371

CAP,37 Degree, 9/16"-18

- tube, 9/16 inch thread

3шт.

9

50-2546T1

TUBE

-, Serial Range: valve-valve

1шт.

10

31-1755

REDUCER,37º, 1 1/16"-12, Fem x 9/16"-18 Male

CONNECTOR - straight, 1-1/16 x 9/16 inch thread

1шт.

12

18-606

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring run

- adjustable, 1-1/16 x 1-1/16 x 1-1/16 inch thread, Includes: Ref. 13

2шт.

13

31-344

O-RING,12-1, 90 Duro, .924 ID x .116" Thk

- 59/64 x 1/8 inch

2шт.

16

50-2545T1

TUBE

-, Serial Range: valve-valve

1шт.

17

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - 9/16 x 9/16 inch thread (Includes: Ref. 4)

2шт.

21

50-2544T1

TUBE

-, Serial Range: valve-valve

1шт.

22

31-332

TEE,9/16"-18, 37 Degree x 3/8"-18, NPTF Run

- adjustable, 3/8 NPT, 9/16 x 9/16 inch thread

1шт.

23

31-2663

HOSE ASSY.

HOSE - valve to control valve, 13 inch

1шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16 x 1-1/16 inch

1шт.

28

31-2459

HOSE

- valve to hydraulic tank, 11 inch

1шт.

29

31-375

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - straight, 1/2 NPT x 9/16 inch thread

1шт.

30

18-586

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

- adjustable, 7/8 x 7/8 x 7/8 inch thread, Includes: Ref. 31

1шт.

31

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

34

31-2658

ADAPTER,90 Degree, 37 Degree Fl, 7/8"-14 Male x 7/8"-14 Fem

ELBOW - 90 degree, 7/8 x 7/8 inch thread

1шт.

35

31-2653

HOSE ASSY.

HOSE - elbow to cylinders, 54 inch

1шт.

38

50-2863T1

TUBE

- valve to relief valve

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 x 7/8 inch thread

2шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure 8-34)

1шт.

44

50-2864T1

TUBE

- relief, Serial Range: valve-valve

1шт.

45

60-66

REDUCER

CONNECTOR - straight, 1-1/16 x 7/8 inch thread

1шт.

46

31-2458

HOSE

- valve to hydraulic tank, 30 inch

1шт.

47

31-1475

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 NPT x 1-1/16 inch thread

1шт.

50

31-377

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 1/4 NPT x 9/16 inch thread

1шт.

51

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

52

31-2146

CONNECTING ROD

CONNECTOR - adjustable, 1/4 NPT x 7/16 inch thread, Includes: Ref. 53

1шт.

53

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

55

31-1778

VALVE

- shuttle

1шт.

56

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable, 90 degree, 7/16 x 7/16 inch

1шт.

59

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - 7/16 x 7/16 inch thread (Includes: Ref. 53)

1шт.

63

31-2661

HOSE ASSY.

HOSE - elbow to tube, 12 inch

1шт.

64

50-2909T1

TUBE ASSY.

TUBE - hose to control valve

1шт.

66

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

67

31-1862

CLAMP

- tube

1шт.

68

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

71

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

2шт.

72

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

7шт.

73

32-310

CLAMP

- tube

1шт.

74

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

75

50-2865T1

BRACKET

- support, clamp

1шт.

77

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.
