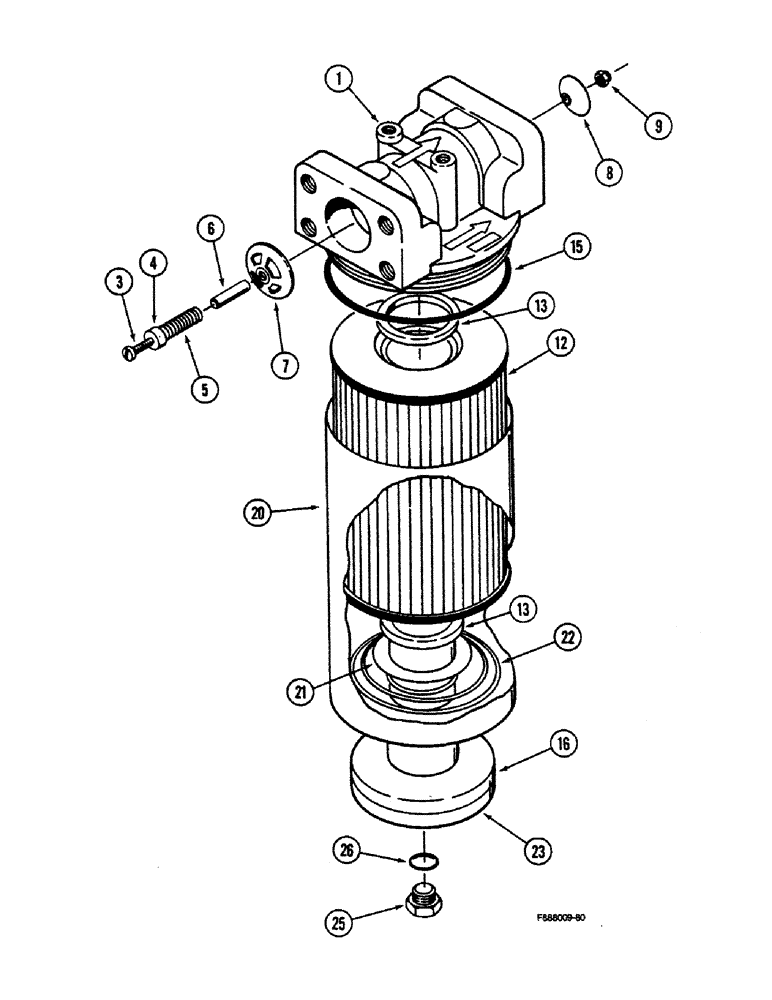

Запчасти Case IH 9150 (8-20) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

50-1413T93

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - filter head

1шт.

50-1876T91

BY-PASS VALVE

BY PASS ASSEMBLY - filter, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW - machine, pan head

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - spring retainer

1шт.

5

50-1877T1

SPRING

- by pass relief

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - by pass

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - by pass

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - by pass

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

50-2689T91

FILTER, ELEMENT

ELEMENT KIT - filter, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - filter

2шт.

15

18-91

O-RING

- filter element housing

1шт.

16

18-96

GASKET

SEAL - center post to filter housing

1шт.

20

18-95

HOUSING

- filter

1шт.

21

18-93

WASHER

- back up

1шт.

22

18-94

SPRING

- conical, filter

1шт.

23

50-2918T1

POST

- center, filter housing retaining

1шт.

25

1-6353

PLUG

- o-ring, filter drain, Includes: Ref. 26

1шт.

26

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.
