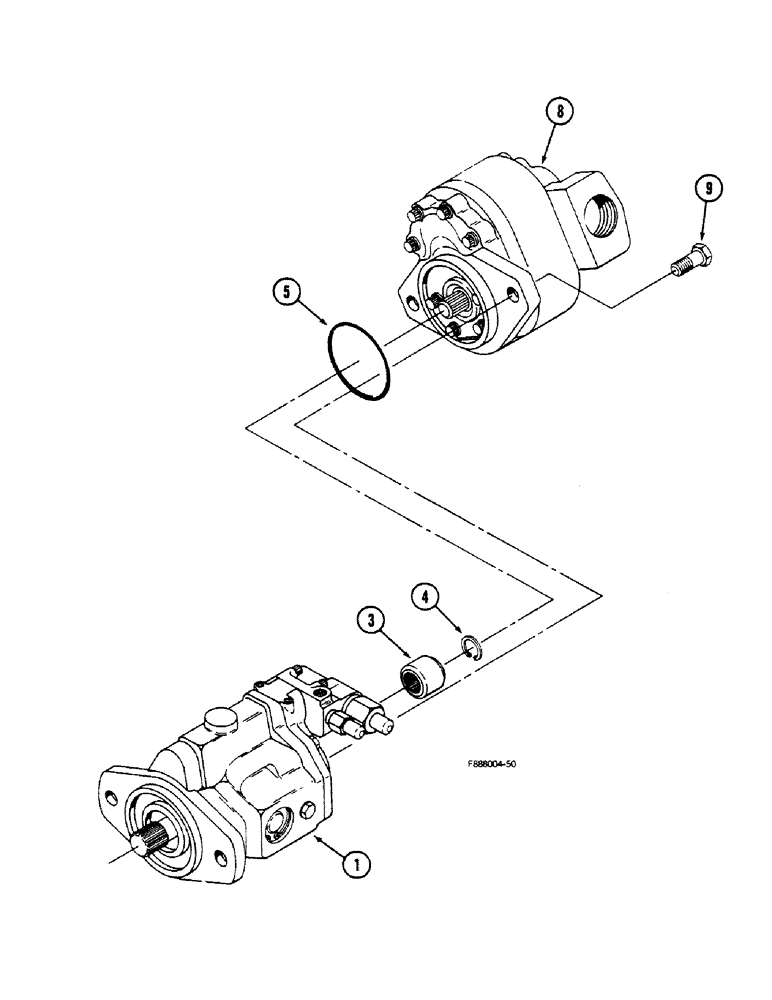

Запчасти Case IH 9150 (8-10) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

50-2621T91

PUMP

ASSEMBLY - tandem, piston and gear

1шт.

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston (See Figures 8-12 and 8-14)

1шт.

3

50-2663T1

COUPLING

- drive, pump

1шт.

4

50-2666T1

RING, SNAP

RING - snap, Includes: Ref. 5

1шт.

5

50-2665T1

O-RING

- seal

1шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - gear (See Figure 8-16)

1шт.

9

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.
