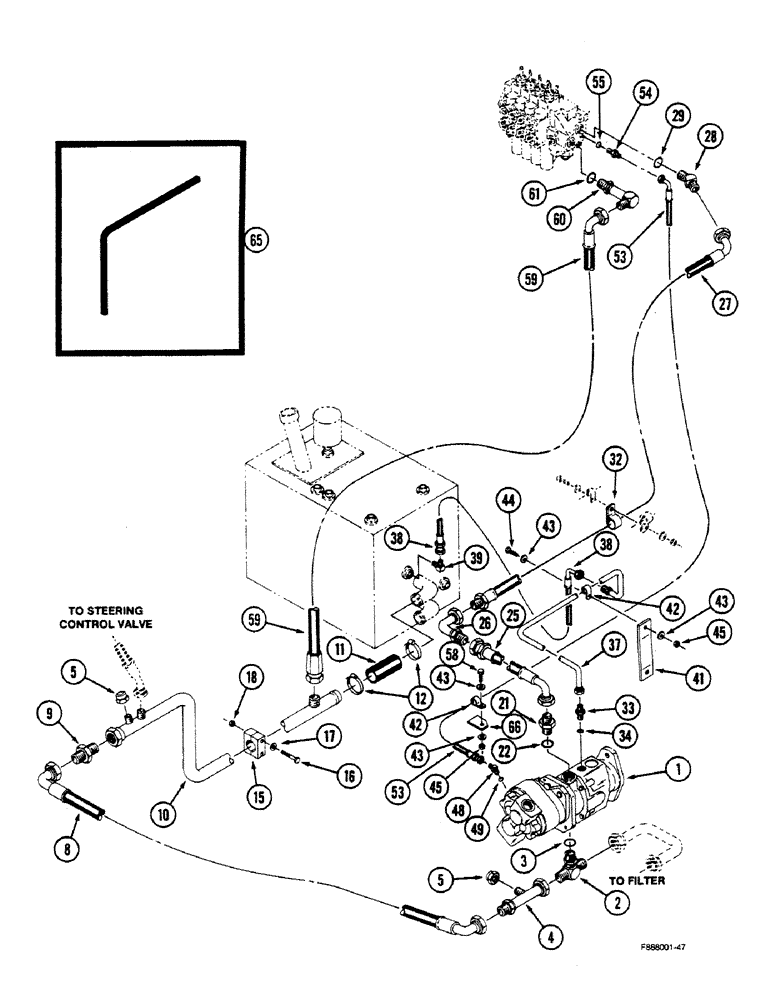

Запчасти Case IH 9150 (8-02) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-10)

1шт.

2

31-2627

TEE,1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring Br

- adjustable, 1-5/8 x 1-5/8 x 1-5/8 inch thread, Includes: Ref. 3

1шт.

3

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-15/32 x 1/8 inch

1шт.

4

50-2835T1

TUBE

- pump to hose, with test port

1шт.

5

31-1240

CAP,37 Degree, 1 1/16"-12

- tube, 1-1/16 inch

2шт.

8

31-2613

HOSE ASSY.

HOSE -, Serial Range: tank-pump

1шт.

9

50-2565T1

VALVE

ASSEMBLY - check

1шт.

10

50-2836T1

TUBE ASSY.

TUBE -, Serial Range: tank-hose

1шт.

11

1-4571

HOSE

- tank to tube, 1-1/2 x 4 inch

1шт.

12

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

15

50-2884T1

CLAMP

- tube, set

1шт.

16

19-416

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

17

19-105

WASHER,1/4", SAE

- flat, 1/4 x 3/4 x 1/16 inch

2шт.

18

19-1081

LOCK NUT

- hex, lock, 1/4 inch NC

2шт.

21

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR ASSEMBLY - straight, 1-5/16 x 1-5/16 inch thread, Includes: Ref. 22

1шт.

22

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

25

31-2645

HOSE ASSY.

HOSE -, Serial Range: pump-elbow

1шт.

26

31-1787

ADAPTER,90 Degree, 37 Degree Fl, 1 5/16"-12 Male x 1 5/16"-12 Fem

ELBOW - 90 degree, 1-5/16 x 1-5/16 inch thread

1шт.

27

31-2620

HOSE ASSY.

HOSE - elbow to control valve

1шт.

28

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

- adjustable, 45 degree, 1-5/16 x 1-5/16 inch, Includes: Ref. 29

1шт.

29

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

32

31-1349

MOUNTING CLIP

CLAMP - hose

1шт.

33

31-421

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSEMBLY - straight, 9/16 x 7/8 inch thread, Includes: Ref. 34

1шт.

34

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

50-2848T1

TUBE

-, Serial Range: pump-hose

1шт.

38

31-2624

HOSE ASSY.

HOSE -, Serial Range: tube-tank

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 NPT x 7/8 inch thread

1шт.

41

50-2883T2

BRACKET

- support, clamp

1шт.

42

31-2488

CLAMP

- tube

2шт.

43

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

44

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

45

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

2шт.

48

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

- 45 degree adjustable, 1/4 tube, 7/16-20 thread, Includes: Ref. 49

1шт.

49

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

53

31-2689

HOSE ASSY.

HOSE - pump, Serial Range: compensator-valve

1шт.

54

31-2411

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 x 7/16 inch thread, Includes: Ref. 55

1шт.

55

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

58

19-723

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

- hex, 5/16 NC x 7/8 inch

1шт.

59

31-2623

HOSE ASSY.

HOSE -, Serial Range: valve-tube

1шт.

60

31-1403

ADAPTER

ELBOW - adjustable, 90 degree, 1-5/16 x 1-5/16 inch thread, Includes: Ref. 61

1шт.

61

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

65

50-2535T1

GROMMET

- protective

1шт.

66

50-2942T1

BRACKET

- mounting, clamp

2шт.
