(6-092) - AXLE ASSEMBLY, NO-SPIN ASSEMBLY, K598.70 AXLE

Запчасти Case IH 9150 (6-092) - AXLE ASSEMBLY, NO-SPIN ASSEMBLY, K598.70 AXLE (06) - POWER TRAIN

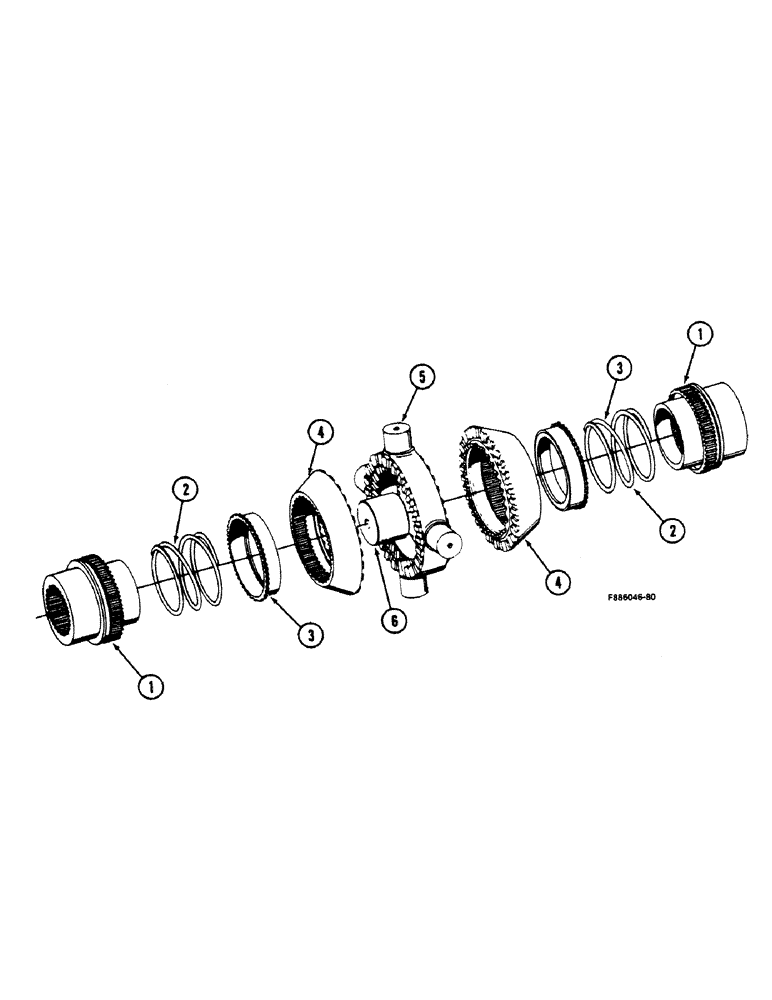

Схема запчастей Case IH 9150 - (6-092) - AXLE ASSEMBLY, NO-SPIN ASSEMBLY, K598.70 AXLE (06) - POWER TRAIN
2
5
6
4
3
2
1
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-6767T91

DIFFERENTIAL

AXLE ASSEMBLY - front, with no-spin, Includes: Ref. 1 - 6 and no-spin assembly

1шт.

16-873

DIFFERENTIAL

NO-SPIN ASSEMBLY - axle, Includes: Ref. 1 - 6

1шт.

1

16-1461

GEAR

- side

2шт.

2

16-996T1

SPRING

- compression (Replaces 16-996)

2шт.

3

16-993

COLLAR

RETAINER - clutch

2шт.

4

16-1460T1

HUB

CLUTCH - no-spin

2шт.

5

16-998

DIFF. SPIDER

CAM - spider

1шт.

6

16-1187

SPACER

SLUG - axle spacer

1шт.

Выбрано товаров: 8
