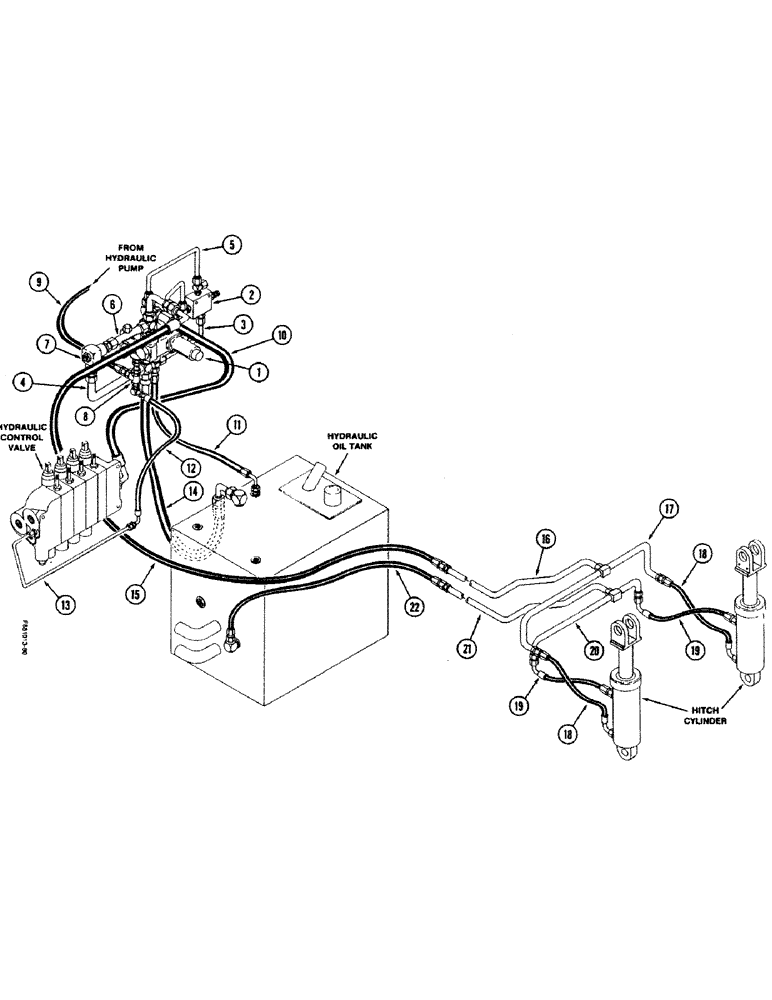

Запчасти Case IH 9150 (1-18) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Hitch Solenoid Valve, Page 8-33

1шт.

2

Pressure Reducing Valve, Page 8-35

1шт.

3

Valve to Valve Tube, Page 8-25

1шт.

4

Relief Valve to Valve Tube, Page 8-25

1шт.

5

Valve to Valve Tube, Page 8-25

1шт.

6

Valve to Relief Valve Tube, Page 8-25

1шт.

7

Relief Valve, Page 8-35

1шт.

8

Shuttle Valve, Page 8-25

1шт.

9

Pump Compensator to Valve Hose, Page 8-3

1шт.

10

Valve Supply Hose, Page 8-25

1шт.

11

Valve Drain Hose, Page 8-25

1шт.

12

Shuttle Valve to Valve Hose, Page 8-25

1шт.

13

Shuttle Valve to Valve Tube, Page 8-25

1шт.

14

Valve Drain Hose, Page 8-25

1шт.

15

Hitch Cylinder Supply Hose, Page 8-27

1шт.

16

Hitch Cylinder Supply Tube, Page 8-27

1шт.

17

Hitch Cylinder Supply Splitter Tube, Page 8-27

1шт.

18

Hitch Cylinder Supply Hose, Page 8-27

1шт.

19

Hitch Cylinder Drain Hose, Page 8-27

1шт.

20

Hitch Cylinder Drain Splitter Tube, Page 8-27

1шт.

21

Hitch Cylinder Drain Tube, Page 8-27

1шт.

22

Hitch Cylinder Drain Hose, Page 8-27

1шт.
