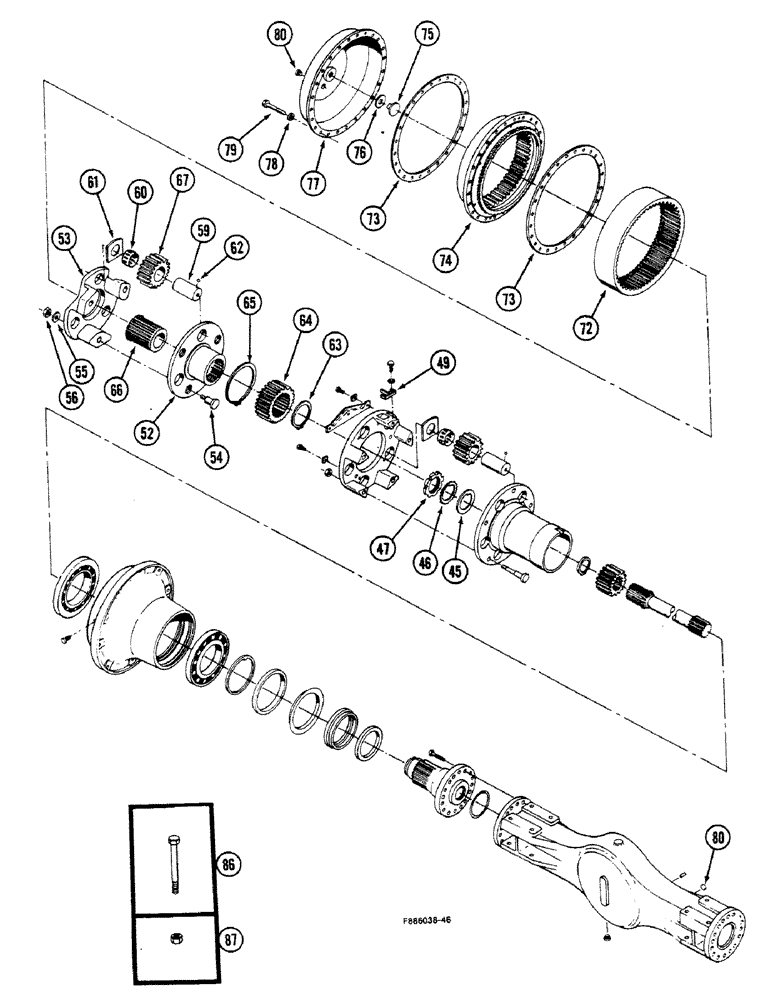

Запчасти Case IH 9150 (6-076) - AXLE ASSEMBLY, HOUSING AND WHEEL END, K598.60/70 SERIES, (CONT) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-6556T91
4WD AXLE ASSY
AXLE ASSEMBLY - front, continued, Includes: Ref. 45 - 80 and 1 - 38 on Fig. 6-74
1шт.
90-6557T91
AXLE HOUSING
AXLE ASSEMBLY - rear, Includes: Ref. 45 - 80 and 1 - 38 on Fig. 6-74
1шт.
45
90-4497T1
DISC
DISK - spacer
2шт.
46
90-4496T1
LOCK WASHER
- lock, adjusting nut
2шт.
47
90-4495T1
NUT
- shaft end (Replaces 9O-4495T1)
2шт.
49
90-4532T1
LARGE PLATE
PLATE - oil
2шт.
90-4522T91
REDUCER
CARRIER ASSEMBLY - planetary, outer, Includes: Ref. 52 - 80
2шт.
90-4523T91
REDUCER
CARRIER ASSEMBLY - planetary, Includes: Ref. 52 - 80
2шт.
52
NSS
NOT SOLD SEPARAT
CARRIER - pinnion, half
2шт.
53
NSS
NOT SOLD SEPARAT
CARRIER - pinnion, half
2шт.
54
16-1608
SCREW,Hex Shldr
BOLT - shouldered
6шт.
55
16-1599
WASHER
- flat
6шт.
56
16-1598
NUT
- hex, M16 x 1
6шт.
59
90-2567T1
PIN
SHAFT - planetary pinion, with lubrication hole
6шт.
60
1-8340
BEARING, NEEDLE
BEARING - needle roller (2 per gear)
12шт.
61
1-8341
SPACER
PLATE - spacer, wear
12шт.
62
16-1607
BALL
- steel
6шт.
63
16-1623
RING, SNAP
RING - snap
2шт.
64
16-1622
SUN GEAR
GEAR - sun
2шт.
65
90-4528T1
RING, SNAP
RING - snap
2шт.
66
90-4526T1
PINION
GEAR - sleeve
2шт.
67
90-4525T1
PINION
GEAR - pinion, idler, 26 tooth
6шт.
72
90-4529T1
GEAR, RING
GEAR - ring
2шт.
73
90-4413T1
GASKET
- (Order 1-1055, RTV sealant)
4шт.
74
90-4521T1
GEAR, RING
GEAR - double ring
2шт.
75
90-2555T1
LARGE PIN
PIN - support, axle shaft
2шт.
76
90-2554T1
SHIM
- suport pin
1шт.
77
90-4520T1
COVER
- axle end
2шт.
78
16-1592
LOCK WASHER
- lock, M15
48шт.
79
40-1171
BOLT,Hex, M14 x 1.5 x 50mm, Gr 10.9
BOLT - hex, M14 x 1.5 x 50 mm, grade 10.9
48шт.
80
90-2523T1
PLUG
- M24 x 1.5
3шт.
Add Comment "W/ 1/2" Sq. Drive"
1шт.
86
19-815
BOLT,Hex, 1" - 8 x 9 1/4", Gr 8
- hex, 1 NC x 9-1/4 inch, grade 8
18шт.
87
19-859
LOCK NUT
- hex lock, 1 inch NC
16шт.
Выбрано товаров: 34
