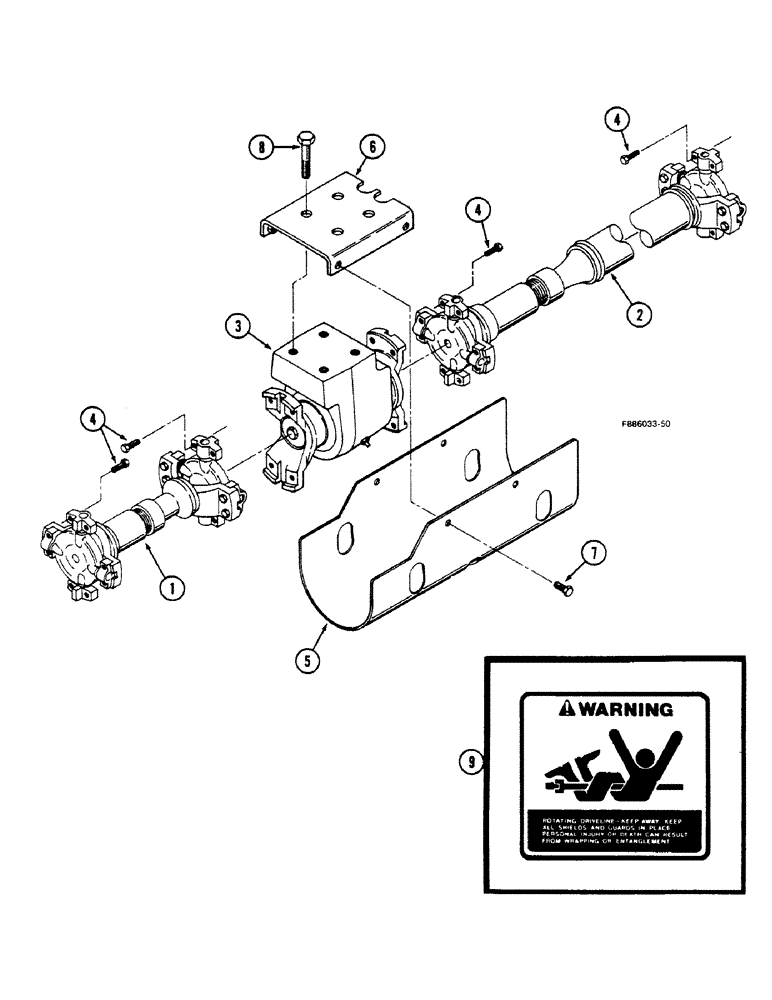

Запчасти Case IH 9150 (6-066) - PTO DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive, front (See Figure 6-68)

1шт.

2

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive, rear (See Figure 6-68)

1шт.

3

REF

INSTRUCTION

BEARING ASSEMBLY - hanger (See Figure 6-68)

1шт.

4

25705R1

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch

16шт.

5

90-6637T1

SHIELD

- drive shaft

1шт.

6

90-6081T1

PLATE

- mounting, drive shaft shield

1шт.

7

9418822

BOLT,Hex, 3/8" x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

8

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

9

2-7126T1

DECAL

- PTO drive shaft

2шт.
