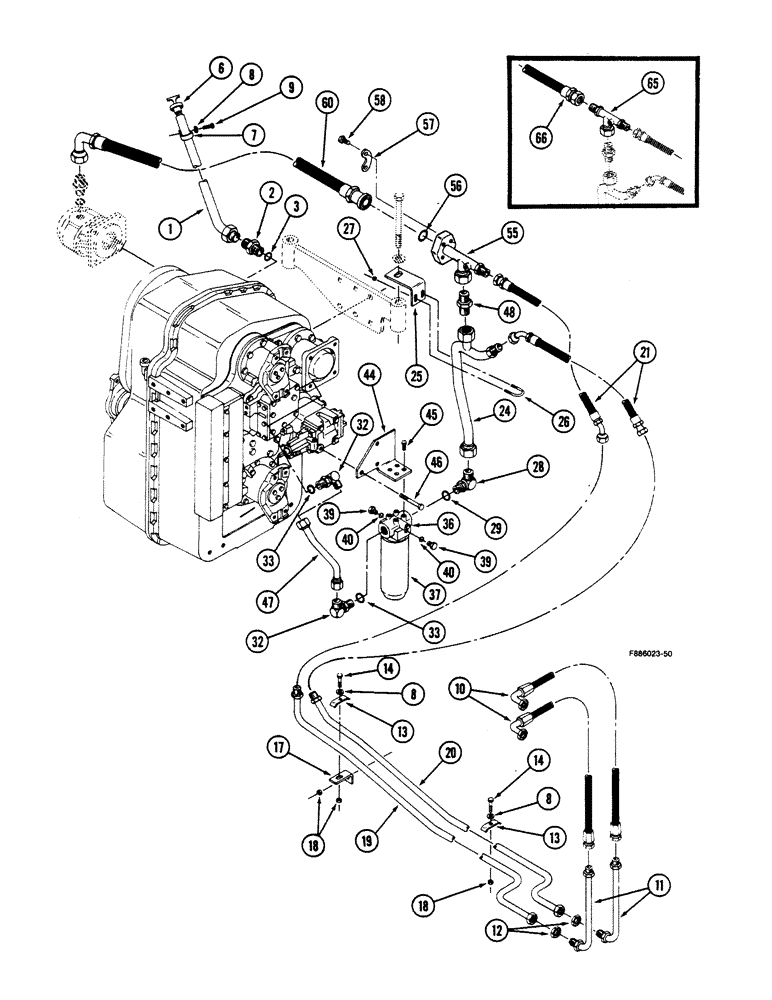

Запчасти Case IH 9150 (6-046) - TRANSMISSION LUBRICATION, TRANSMISSION TO OIL COOLER (06) - POWER TRAIN

1

90-6545T1

TUBE,1.25" OD

ASSEMBLY - dipstick

1шт.

2

31-401

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSEMBLY - straight, 1-5/8 x 1-5/8 inch thread, Includes: Ref. 3

1шт.

40

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

2шт.

3

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

6

90-6546T1

DIPSTICK

- oil check

1шт.

7

31-1348

CLAMP

- mounting, dipstick tube

1шт.

8

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

3шт.

9

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

10

31-2478

HOSE

- tubes to oil cooler, 50 inch

2шт.

11

90-5968T1

TUBE,0.75" OD x 15.45", 3.71" L

- to oil cooler hose (Replaces 90-5988T1)

2шт.

12

31-2375

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, tube, 1-1/18 - 12 inch

2шт.

13

90-5971T1

CLAMP

- tube retaining

2шт.

14

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

17

50-2871T2

BRACKET

- tube mounting

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

90-6584T2

TUBE,.75" OD

- to oil cooler

1шт.

20

90-6585T2

TUBE,.75" OD

- from oil cooler

1шт.

21

31-2635

HOSE ASSY.

HOSE - to cooler tubes, 19-1/2 inch

2шт.

24

90-6582T1

TUBE,1.25" OD

- cooler to filter

1шт.

25

90-6603T1

BRACKET

- tube support

1шт.

26

19-153

U-BOLT

- tube support

1шт.

27

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

28

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 29

1шт.

29

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

32

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

- 90 degree, 1-5/16 x 1-5/16 inch thread, Includes: Ref. 33

2шт.

33

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

2шт.

36

90-6524T91

FILTER ASSY

FILTER ASSEMBLY - transmission oil, Includes: Ref. 37

1шт.

37

N9025

HYDRAULIC OIL FILTER

ELEMENT - filter replacement

1шт.

39

31-1664

PLUG

- o-ring, 1/2 inch thread, Includes: Ref. 40

2шт.

44

90-6523T1

BRACKET

- filter mounting

1шт.

45

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

46

SM8124085

BOLT

BOLT - hex, M10 x 1.25 x 85 mm

3шт.

47

90-6583T1

TUBE,1" OD

- transmission to filter

1шт.

48

90-6578T1

VALVE POPPET

VALVE - check

1шт.

55

90-6887T1

TUBE,1.25" OD x 7.56" L

ASSEMBLY - pump to cooler lines

1шт.

56

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch, Includes: Ref. 57

1шт.

57

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

58

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

4шт.

60

31-2775

HOSE

- pump to tube, without PTO, 31-1/2 inch

1шт.

60

31-2776

HOSE

- pump to tube, with PTO, 29-1/2 inch

1шт.

65

90-6581T1

TUBE,1.25" OD x 7.03" L

ASSEMBLY - pump to cooler lines, Start Serial: 17900000

1шт.

66

31-2711

HOSE ASSY.

HOSE - pump to tube, without PTO, 32 inch, Start Serial: 17900000

1шт.

66

31-2641

HOSE ASSY.

HOSE - pump to tube, with PTO, 30 inch, Start Serial: 17900000

1шт.
