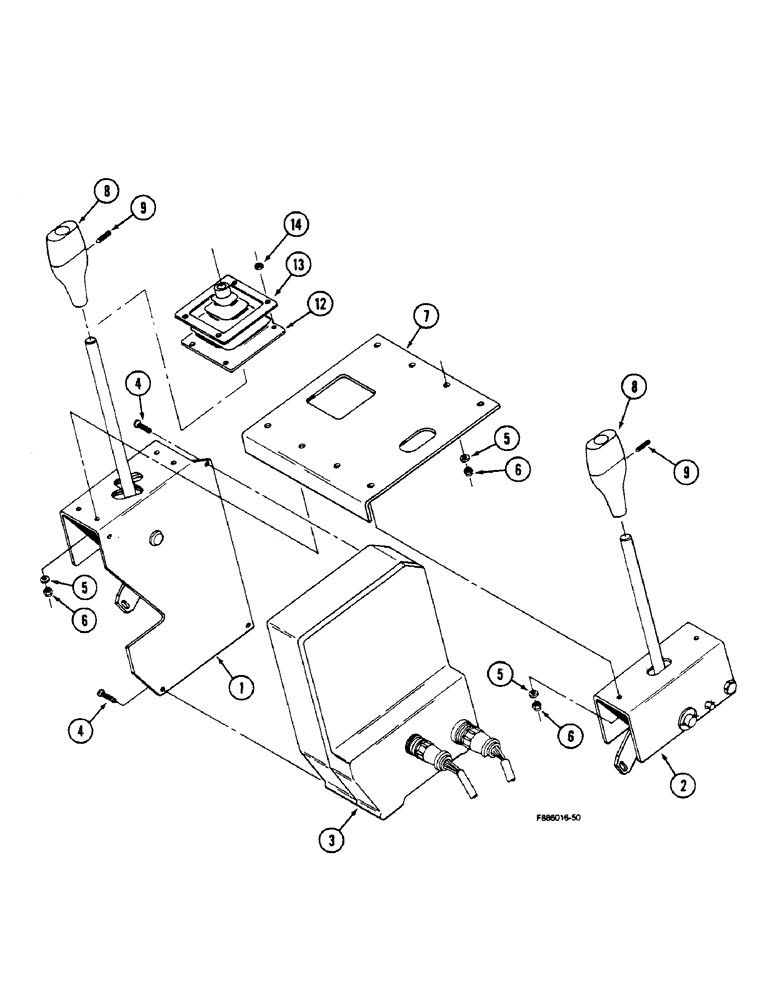

Запчасти Case IH 9150 (6-032) - TRANSMISSION SHIFT CONTROLS, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL ASSEMBLY - mode (See Figure 6-34)

1шт.

2

REF

INSTRUCTION

CONTROL ASSEMBLY - pulser (See Figure 6-36)

1шт.

3

60-6133T1

BOX

CONTROLLER - transmission, electronic, cab, Serial Range: -17900705

1шт.

For tractors built prior to P.I.N. JCB0001961 new MPH magnetic sensor 60-6085T1 must also be ordered and used.

1шт.

60-6570T1R

REMAN ELECT CONTROL

9150 PRIOR TO S/N JCB0003600 (12/86-6/89), Reman for New P/N 60-6133T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

60-6132T1

BOX

CONTROLLER - transmission, electronic, ROPS and cab (For all tractors built with ROPS and cab, Start Serial: 17900705

1шт.

For tractors built prior to P.I.N. JCB0001961 new MPH magnetic sensor 60-6085T1 must also be ordered and used.

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, no. 10 x 3/4 inch

4шт.

5

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

14шт.

6

19-1081

LOCK NUT

- lock, 1/4 inch NC

14шт.

7

60-5058T1

SUPPORT

BRACKET - adapter, control mounting

1шт.

8

60-6036T1

KNOB

KNOB - shift handle

2шт.

9

19-5926

SET SCREW

SCREW - set, no. 8 NC x 3/8 inch

2шт.

12

60-5847T1

BOOT

- bellows (ROPS only)

2шт.

13

60-5846T1

RETAINER

- boot (ROPS only)

2шт.

14

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 NC (ROPS only)

8шт.
