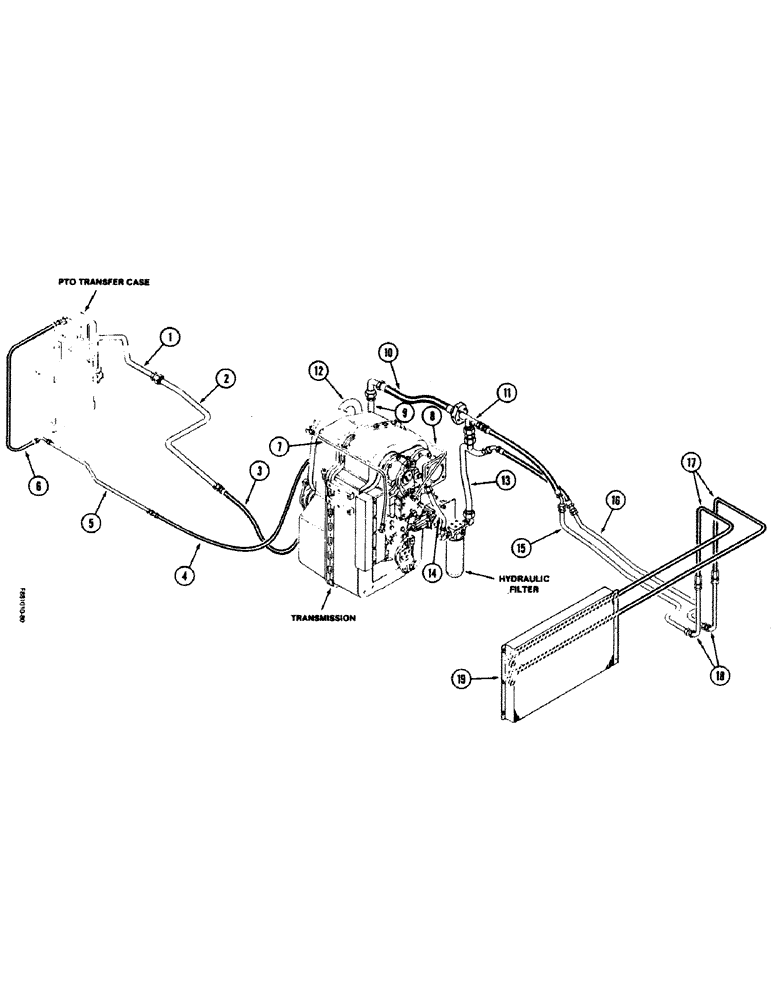

Запчасти Case IH 9150 (1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

1

PTO Transfer Case Return Tube, Page 6-53

1шт.

2

PTO Transfer Case Return Tube, Page 6-53

1шт.

3

PTO Transfer Case to Transmission Return Hose, Page 6-53

1шт.

4

PTO Transfer Case Lubrication Hose, Page 6-53

1шт.

5

PTO Transfer Case Lubrication Tube, Page 6-53

1шт.

6

PTO Transfer Case Lubrication Hose, Page 6-53

1шт.

7

Transmission Lubrication Tube, Page 6-51

1шт.

8

Transmission Lubrication Tube, Page 6-51

1шт.

9

Hydraulic Pump Pressure Tube, Page 6-49

1шт.

10

Hydraulic Pump Pressure Hose, Page 6-47

1шт.

11

Hydraulic Pump to Cooler Tube Assembly, Page 6-47

1шт.

12

Hydraulic Pump Suction Tube, Page 6-49

1шт.

13

Cooler to Filter Tube, Page 6-47

1шт.

14

Transmission to Filter Tube, Page 6-47

1шт.

15

Oil Cooler Inlet Tube, Page 6-47

1шт.

16

Oil Cooler Return Tube, Page 6-47

1шт.

17

Oil Cooler Hoses, Page 6-47

1шт.

18

Oil Cooler Tubes, Page 6-47

1шт.

19

Oil Cooler, Page 8-23

1шт.
