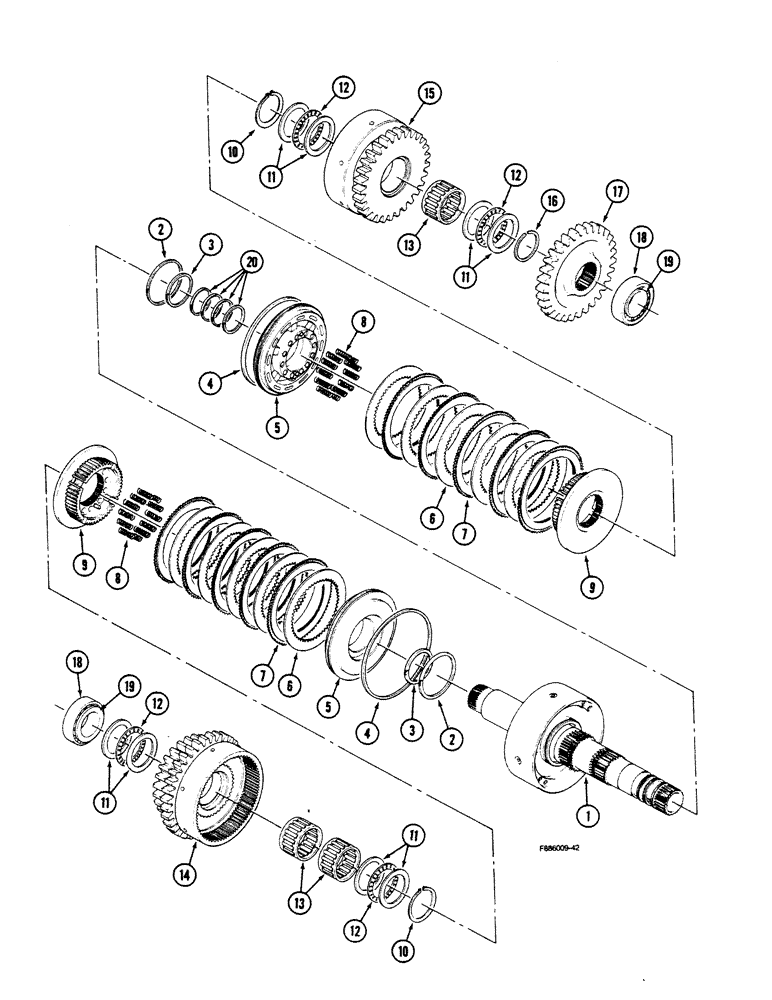

Запчасти Case IH 9150 (6-018) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (06) - POWER TRAIN

90-6256T91

TRANSMISSION

ASSEMBLY (Continued from Figure 6-16), Includes: Ref. 1 - 20 and clutch pack assembly

1шт.

S3000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 inch, 2nd, Includes: Ref. 1 - 20

1шт.

1

S3900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

- piston

2шт.

Part of Transmission Gasket Kit, P/N S1670S00F.

1шт.

3

S2610S00F

RING

- piston

2шт.

Part of Transmission Gasket Kit, P/N S1670S00F.

1шт.

4

S2630S00F

RING

- sealing (Replaces S2600S00F)

2шт.

Part of Transmission Gasket Kit, P/N S1670S00F.

1шт.

5

S2180S00F

PISTON

- clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE steel, flat, 2.4 mm thick

1шт.

Regarding Ref. 6 steel plates, a total of 18 pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE steel, flat, 2.1 mm thick

1шт.

Regarding Ref. 6 steel plates, a total of 18 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

PLATE - faced

10шт.

8

S2640S00F

SPRING

- return, piston

24шт.

9

S2850S00F

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

- thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - needle

3шт.

14

S3040S00F

PINION

GEAR - counter (34 teeth/26 teeth)

1шт.

15

S2280S00F

PINION

GEAR - drive (29 teeth)

1шт.

16

S2240S00F

RING, SNAP

RING - retaining

1шт.

17

S3030S00F

PINION

GEAR - input (31 teeth)

1шт.

18

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

19

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE ASSEMBLY - bearing

2шт.

20

S3070S00F

RING

- sealing

4шт.

Part of Transmission Gasket Kit, P/N S1670S00F.

1шт.

S1670S00F

GASKET

KIT Gasket, transmission, Includes: Refs. 2, 3, 4 and 20

1шт.
